Removal Procedure

  1. Disconnect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)
    2. Fig 1: Battery Positive Junction Block Cable
    GM4285420Courtesy of GENERAL MOTORS COMPANY
  2. Remove Battery Positive Junction Block Cable (5)@Engine Wiring Harness Junction Block Battery Positive Junction Block Cable Replacement
    3. Fig 2: Horn Replacement (Left Side)
    GM4378745Courtesy of GENERAL MOTORS COMPANY
  3. Reposition Horn (2)Horn Replacement (Left Side)Horn Replacement (Right Side)
    4. Fig 3: Electrical Connector
    GM4404593Courtesy of GENERAL MOTORS COMPANY
  4. Electrical Connector (1)

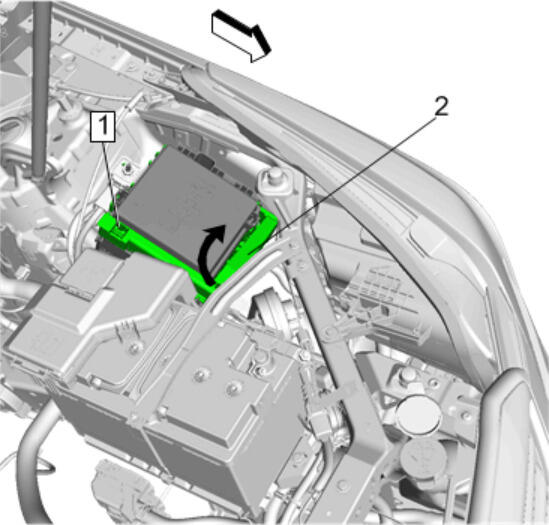

    5. Fig 4: Lever Lock And Rotate Handle
    GM4299052Courtesy of GENERAL MOTORS COMPANY
  5. Release the lever lock (1) and rotate handle (2) upwards.

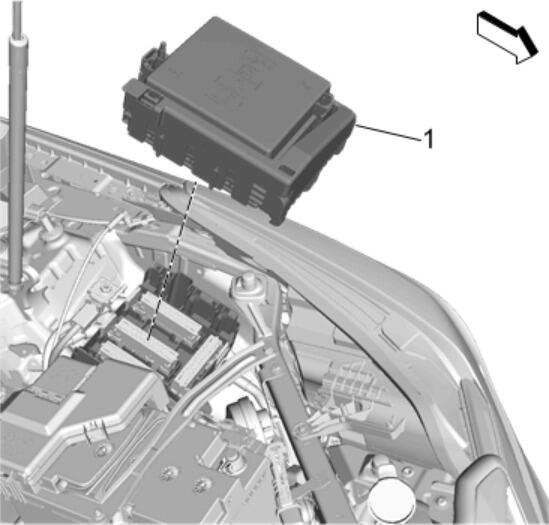

    6. Fig 5: Engine Wiring Harness Junction Block
    GM4299056Courtesy of GENERAL MOTORS COMPANY
  6. Remove Engine Wiring Harness Junction Block
