Battery Tray Replacement

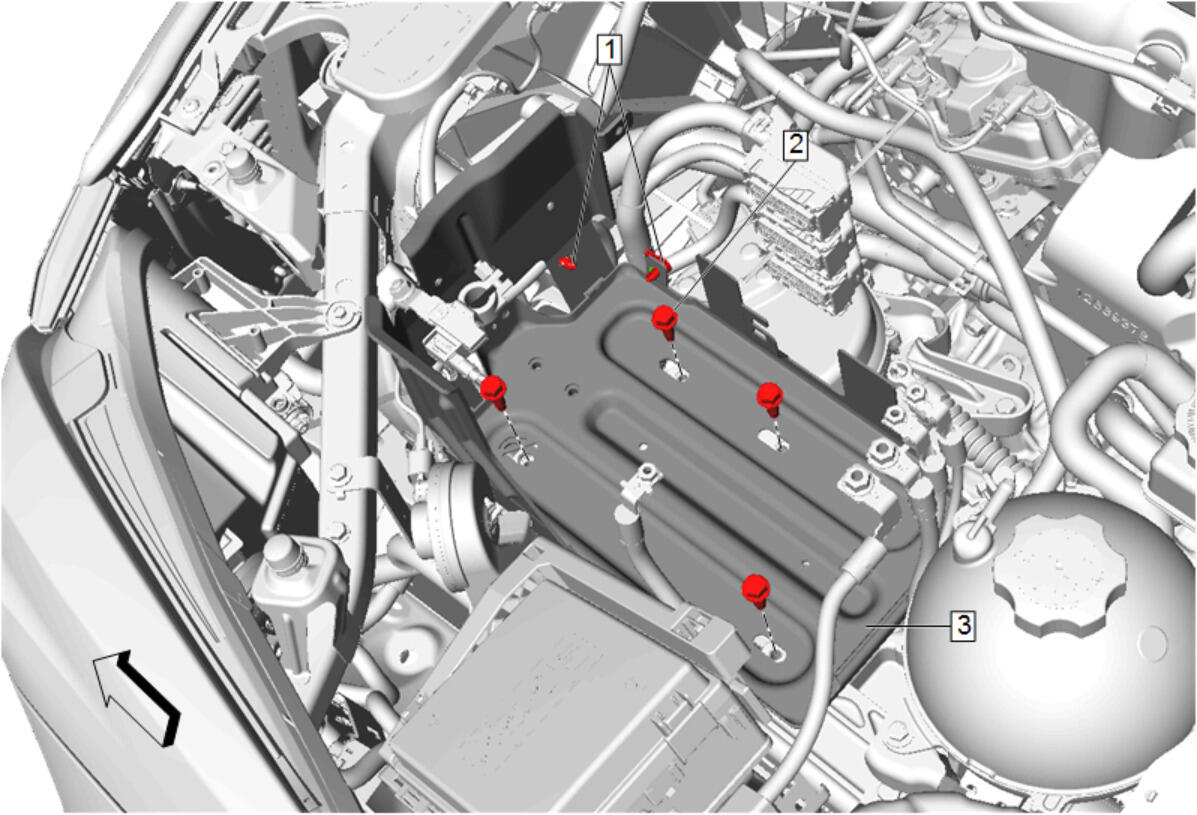

Fig 1: Battery Tray

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Battery Replacement (LGX) Battery Replacement (LCV) Engine Control Module Bracket Replacement Disengage any retainers attached to the battery tray.
1	Battery Tray Mounting Bolt (Qty: 4) CAUTION: Refer to Fastener Caution Tighten 22 N.m (16 lb ft)
2	Battery Tray

Callout

Component Name

Preliminary Procedures

Battery Tray Mounting Bolt (Qty: 4)

CAUTION:

Tighten
22 N.m (16 lb ft)

Battery Tray
