Dual Charge Only Receptacle Replacement

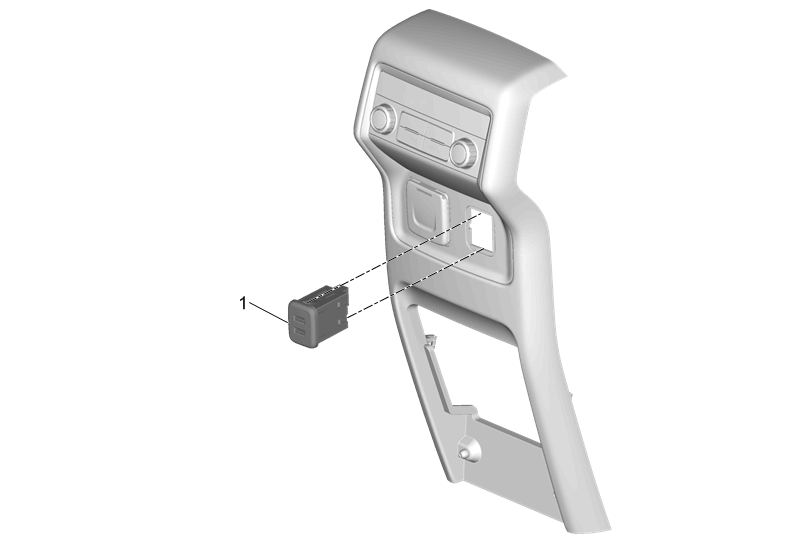

Fig 1: Dual Charge Only Receptacle
GM4405236Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Dual Charge Only Receptacle

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connector.
