Installation Procedure

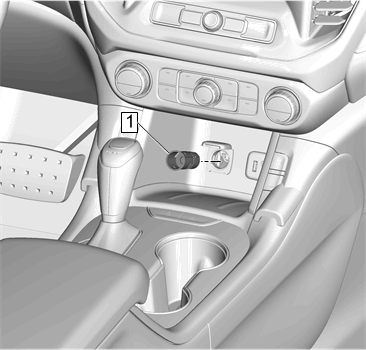

    Fig 1: Accessory Power Receptacle
    GM4404760Courtesy of GENERAL MOTORS COMPANY
  1. Route the connector through the retainer. Align the accessory power receptacle (1) to the slots in the opening.
  2. Install the retainer by pressing into place fully seated.
  3. Connect the electrical connector to the receptacle.
  4. Align the tabs on the receptacle to the slots in the retainer. Install the receptacle (1) by pressing into place until fully seated.
  5. Connect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection (Without KL9)Battery Negative Cable Disconnection and Connection (With KL9) .
