Removal Procedure

WARNING:

Refer to Brake Dust Warning

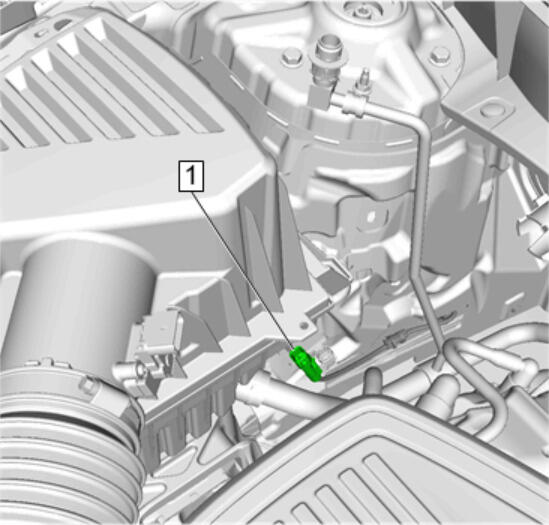

    Fig 1: Wheel Speed Sensor Electrical Connector
    GM4353799Courtesy of GENERAL MOTORS COMPANY
  1. Disconnect Wheel Speed Sensor Electrical Connector (1)

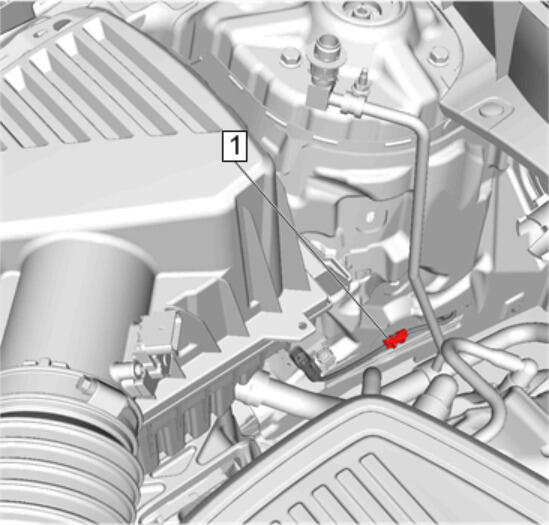

    2. Fig 2: Retainer
    GM4353805Courtesy of GENERAL MOTORS COMPANY
  2. Release Retainer (1) @ Strut Tower
  3. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
  4. Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation

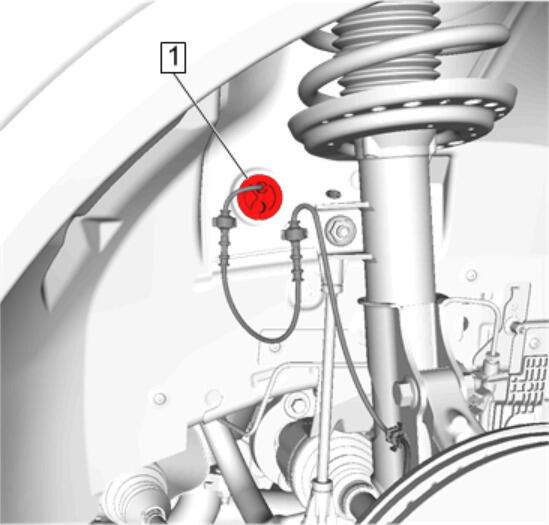

    5. Fig 3: Wheel Speed Sensor Harness Pass Through Grommet
    GM4353808Courtesy of GENERAL MOTORS COMPANY
  5. Release Wheel Speed Sensor Harness Pass Through Grommet (1)

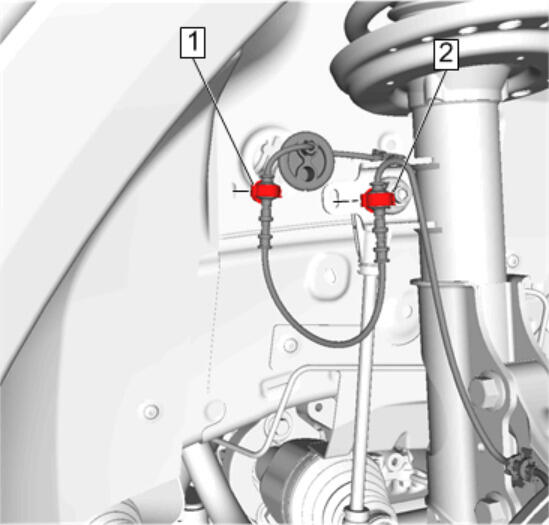

    6. Fig 4: Retainers
    GM4353809Courtesy of GENERAL MOTORS COMPANY
  6. Release Retainer (1) @ Wheelhouse
  7. Release Retainer (2) @ Strut Assembly

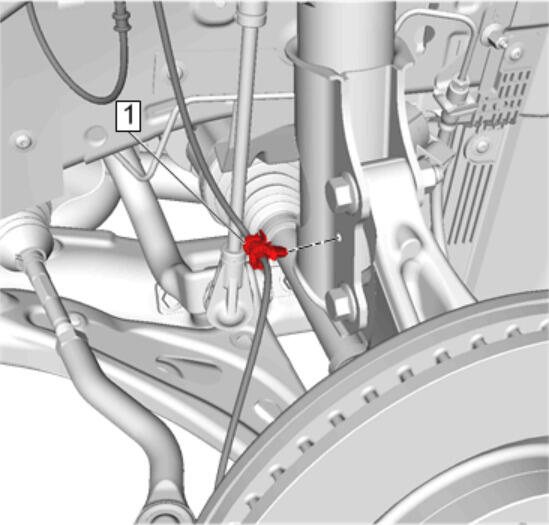

    8. Fig 5: Retainer
    GM4353810Courtesy of GENERAL MOTORS COMPANY
  8. Release Retainer (1) @ Strut Assembly
    9. Fig 6: Wheel Speed Sensor Bolt
    GM4353811Courtesy of GENERAL MOTORS COMPANY
  9. Remove Wheel Speed Sensor Bolt (1)
    10. Fig 7: Wheel Speed Sensor
    GM4353813Courtesy of GENERAL MOTORS COMPANY
  10. Remove Wheel Speed Sensor (1)
