Installation Procedure

WARNING:

Refer to Window Retention Warning .

    Fig 1: Rear Window
    GM4399825Courtesy of GENERAL MOTORS COMPANY
  1. Install Rear Window (1)- Adhesive Installation of Liftgate Windows
  2. Connect the electrical connectors.

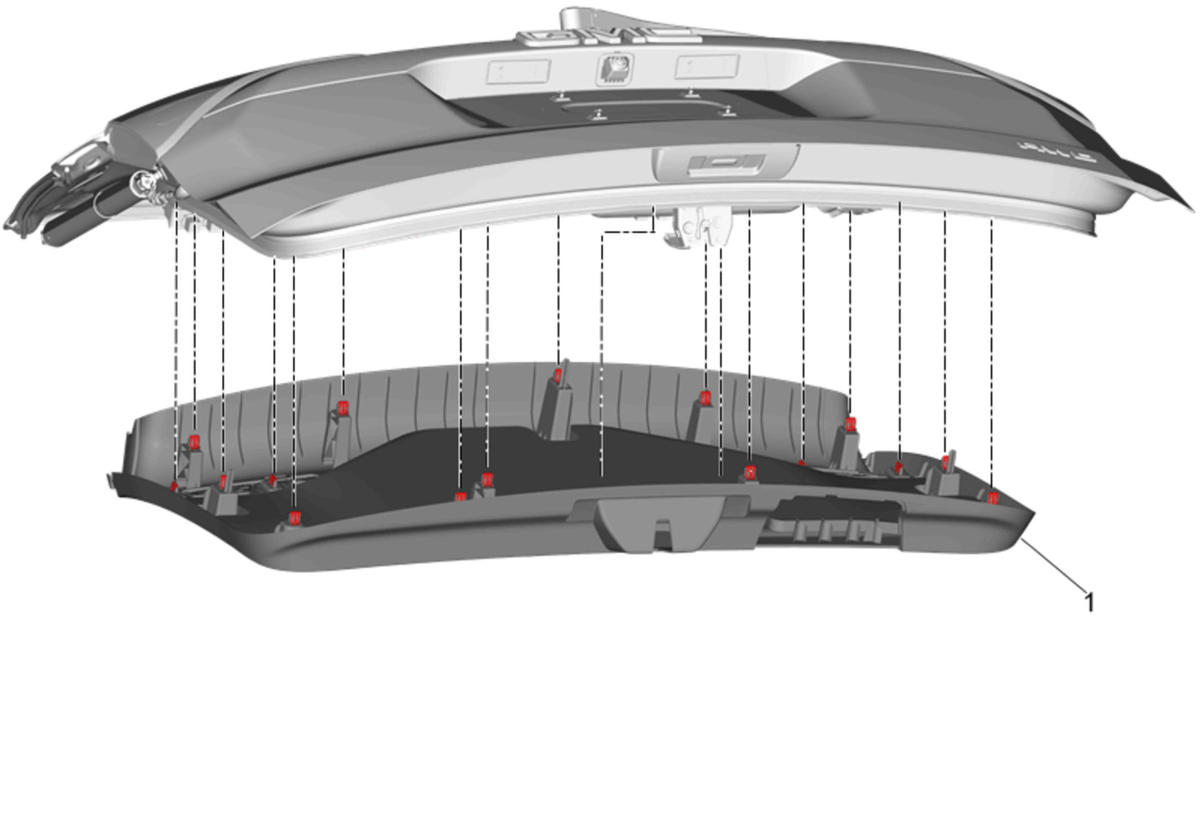

    3. Fig 2: Liftgate Lower Trim Finish Panel
    GM4375596Courtesy of GENERAL MOTORS COMPANY
  3. Install Liftgate Lower Trim Finish Panel (1) - Liftgate Lower Trim Finish Panel Replacement

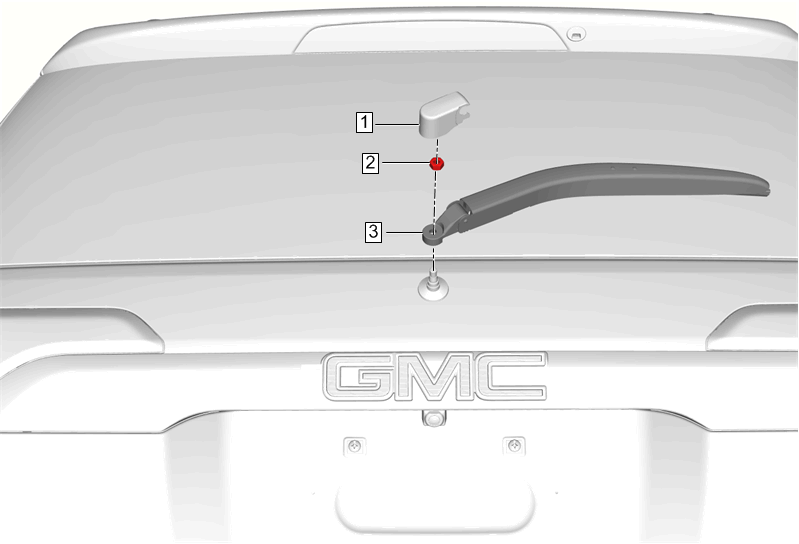

    4. Fig 3: Rear Window Wiper Arm
    GM4364403Courtesy of GENERAL MOTORS COMPANY
  4. Install Rear Window Wiper Arm (3) - Rear Window Wiper Arm Replacement
  5. Remove the tape.
  6. Close the liftgate.
