Removal Procedure
- Open the liftgate.
- Remove Quarter Lower Rear Trim Panel - Quarter Lower Rear Trim Panel Replacement (Left Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side With All Terrain)Quarter Lower Rear Trim Panel Replacement (Left Side Without All Terrain)Quarter Lower Rear Trim Panel Replacement (Right Side Without All Terrain)
- Remove Body Side Upper Rear Applique (1) - Body Side Upper Rear Applique Replacement
- If necessary, use a long utility knife or similar tool to remove the bottom corners of the window from the urethane adhesive.
Remove the window from the urethane adhesive.
- Leave a base of urethane approximately 2 mm (0.078 in) on the pinch-weld flange.
- The only suitable lubrication is clear water.
- Use J 24402-A glass sealant (cold knife) remover, J 39032 stationary glass removal tool, or equivalent to remove the window.

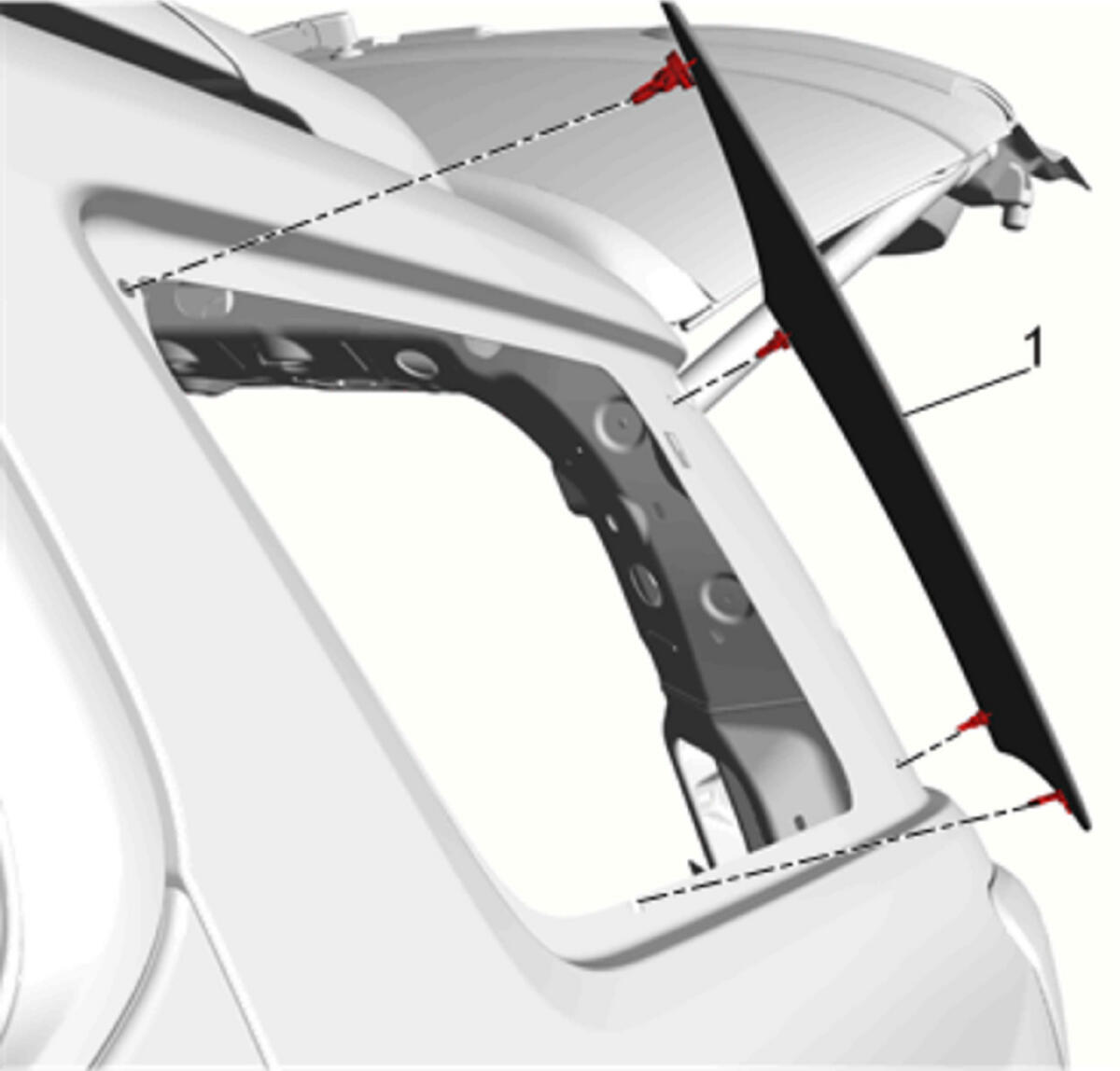

- Remove Quarter Window (1)
WARNING:
Refer to Cracked Window Warning .
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
NOTE:
Before cutting out a quarter window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
NOTE:
Keep the cutting edge of the knife/tool against the window. Do this from inside the vehicle.
