Inside Rearview Mirror Replacement

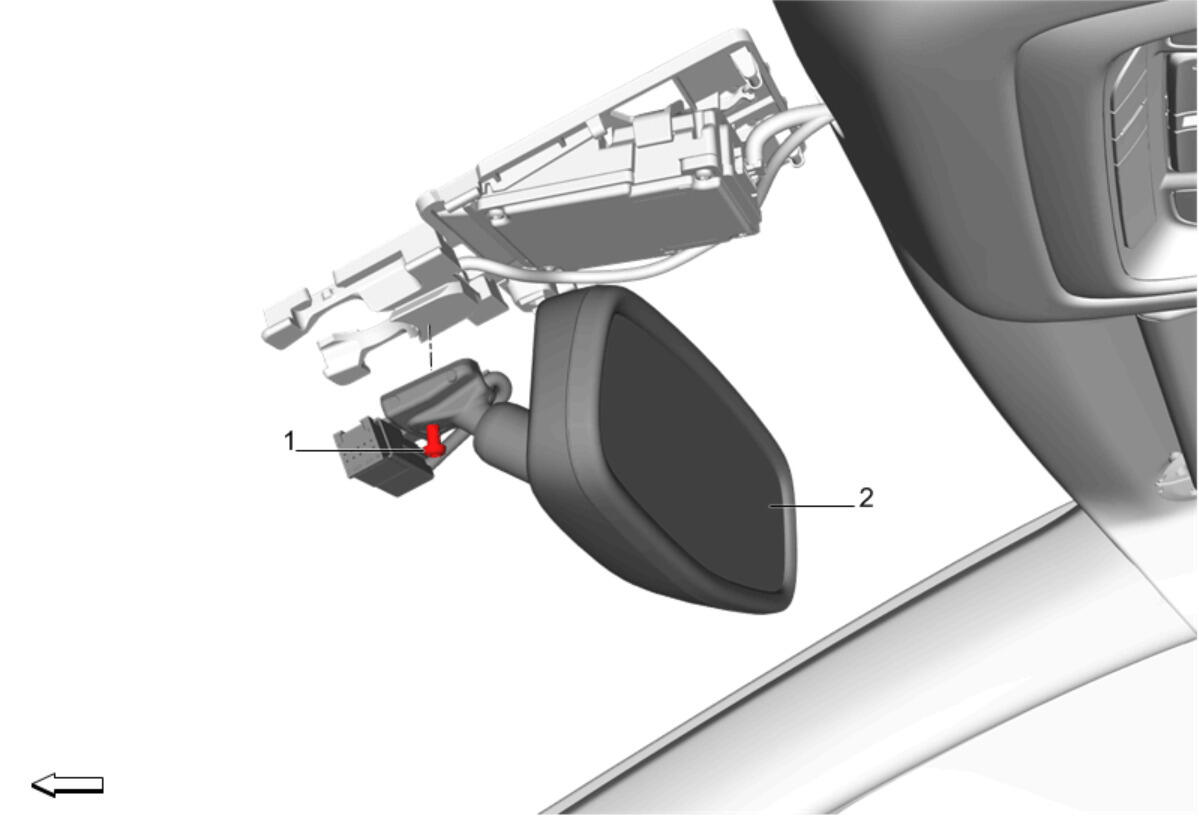

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement (with UEU)Windshield Multifunction Sensor Mount Bracket Cover Replacement (without UEU)
1	Inside Rearview Mirror Set Screw CAUTION: Refer to Fastener Caution . Procedure Loosen the set screw located at the base of the mirror. Tighten 1.8 N.m (16 lb in)
2	Inside Rearview Mirror Procedure Slide the mirror off the rearview mirror button. Disconnect the electrical connector.

Callout

Component Name

Inside Rearview Mirror Set Screw

CAUTION:

Procedure
Loosen the set screw located at the base of the mirror.
Tighten
1.8 N.m (16 lb in)

Inside Rearview Mirror

Procedure
