Rear Cross Traffic Alert (UFG) and Side Object Detection (UKC)

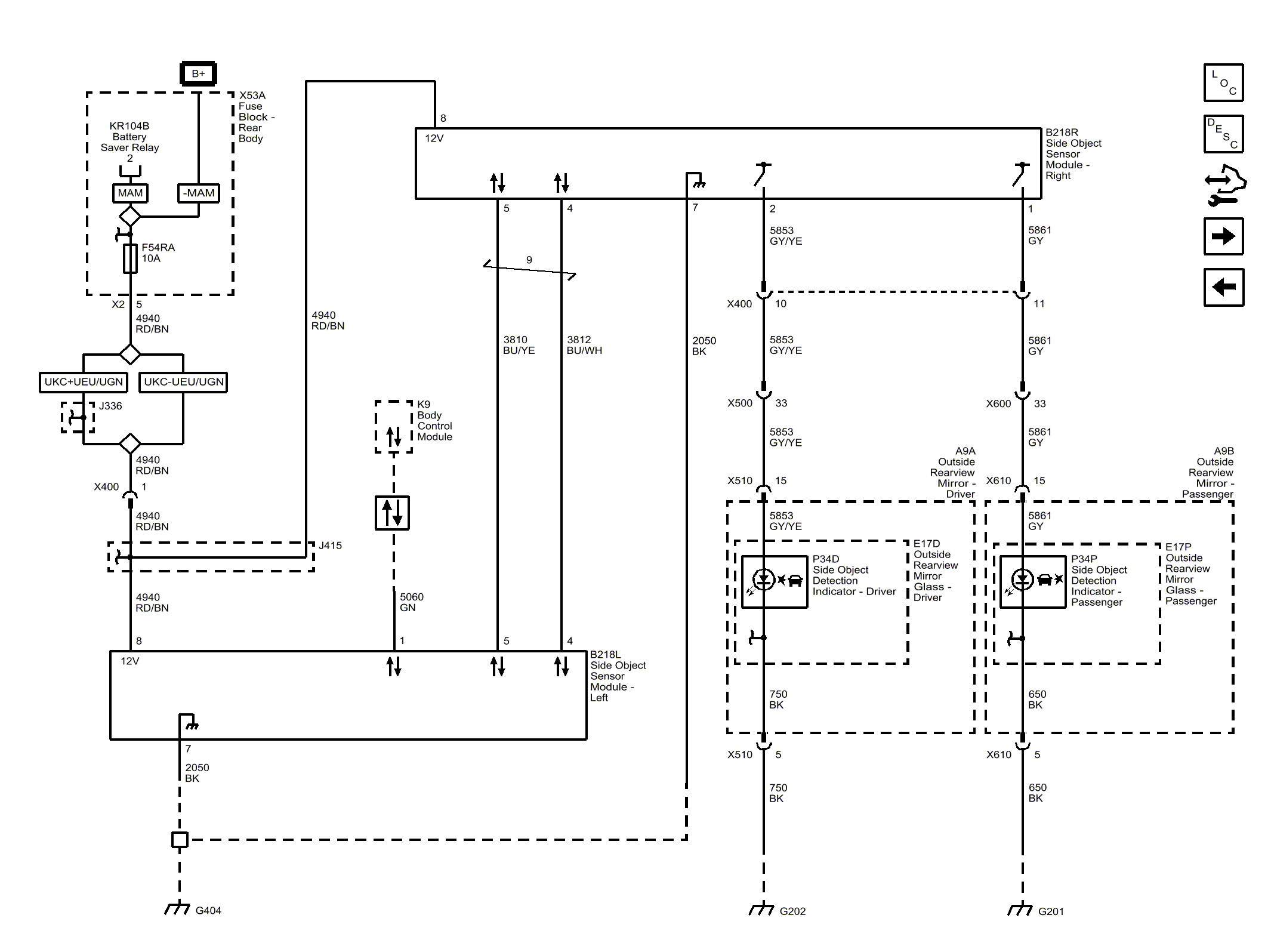

Fig 1: Rear Cross Traffic Alert (UFG) and Side Object Detection (UKC)

GM4373411

Courtesy of GENERAL MOTORS COMPANY
