Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data (UEU and UHX)

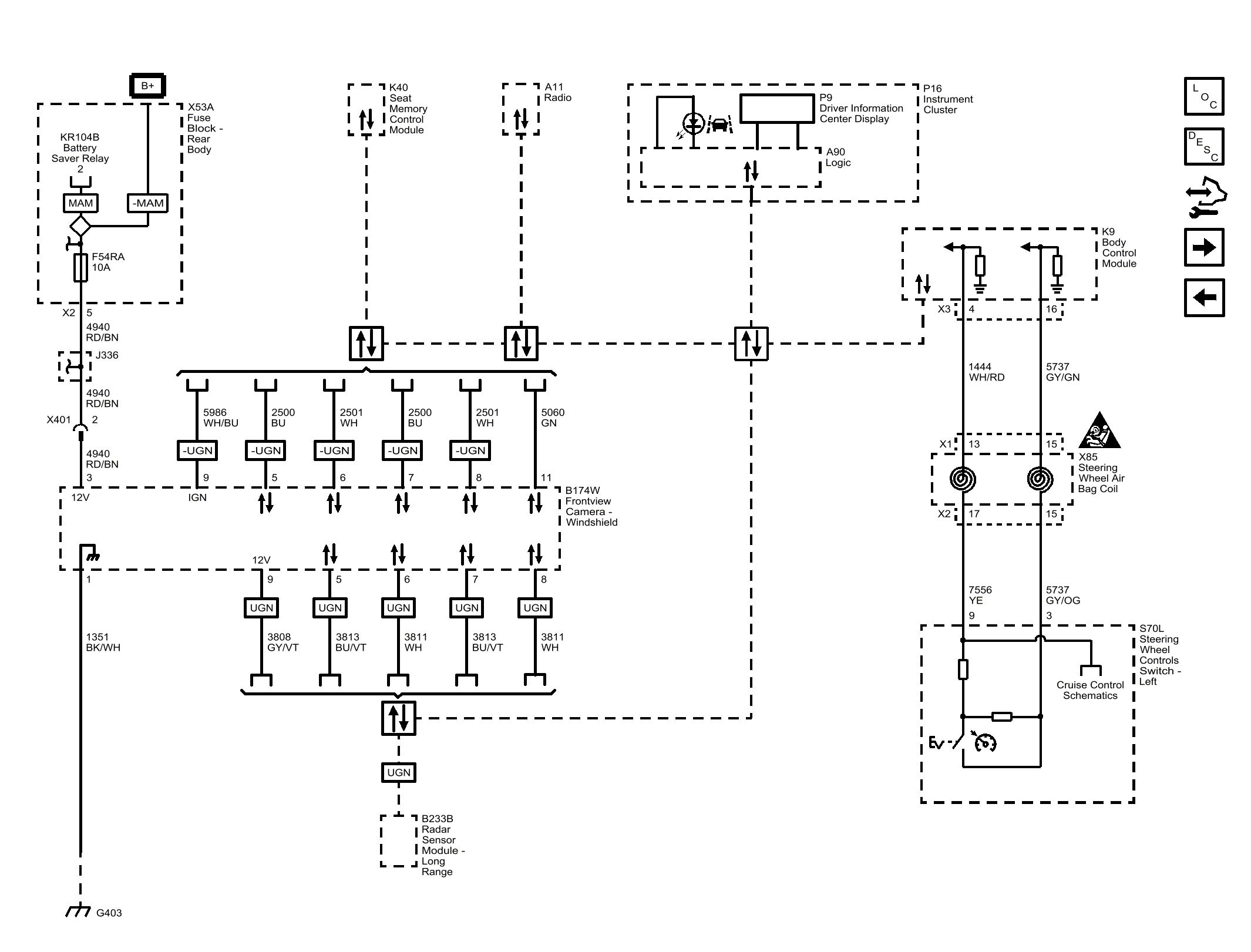

Fig 1: Lane Keep Assist and Forward Collision - Module Power, Ground, and Serial Data (UEU and UHX)
GM4373409Courtesy of GENERAL MOTORS COMPANY
