Collision Avoidance - Long Range and Rear Short Range Radars (UGN)

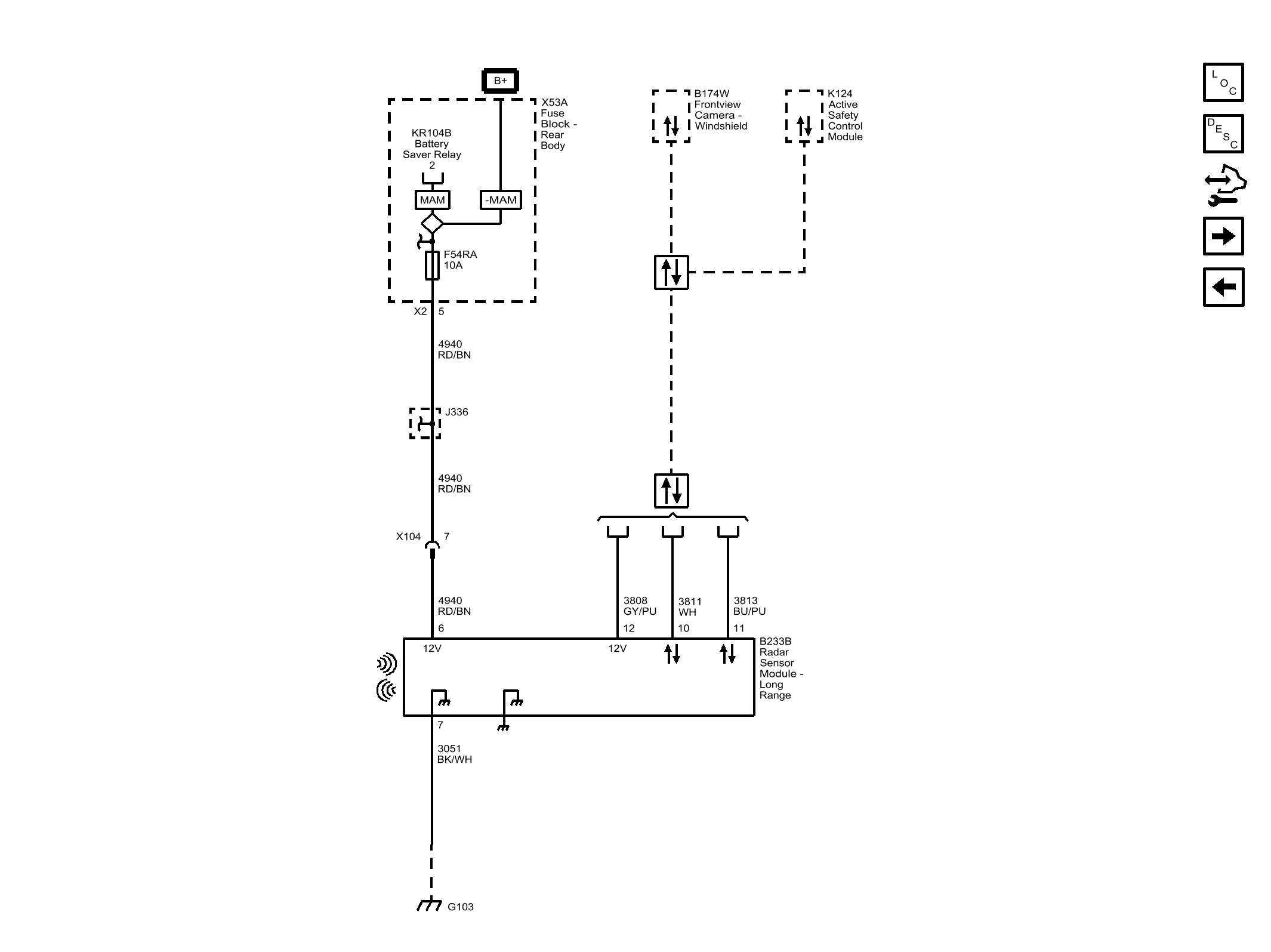

Fig 1: Collision Avoidance - Long Range and Rear Short Range Radars (UGN)

GM4373417

Courtesy of GENERAL MOTORS COMPANY
