Front Parking Assist Alarm Sensor Replacement

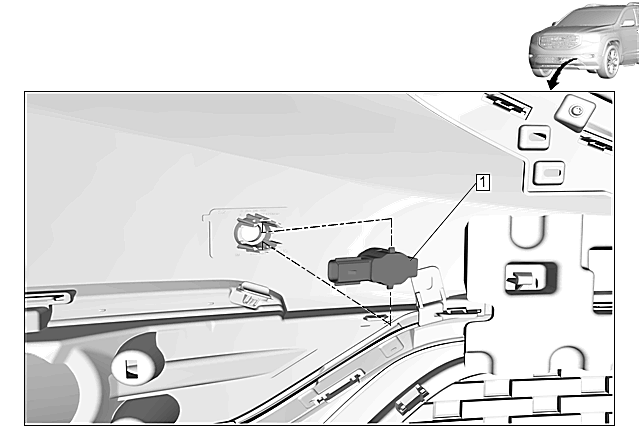

Fig 1: Front Parking Assist Alarm Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement
1	Front Parking Assist Alarm Sensor Procedure Disconnect the electrical connector. Release the locking tab from the advance parking assist alarm sensor bracket. NOTE: Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative

Callout

Component Name

Preliminary Procedure
Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement

Front Parking Assist Alarm Sensor

Procedure

NOTE:

Do not refinish previously painted sensors. Excess paint build up will cause the sensor to be inoperative
