Forward Range Radar Bracket Replacement

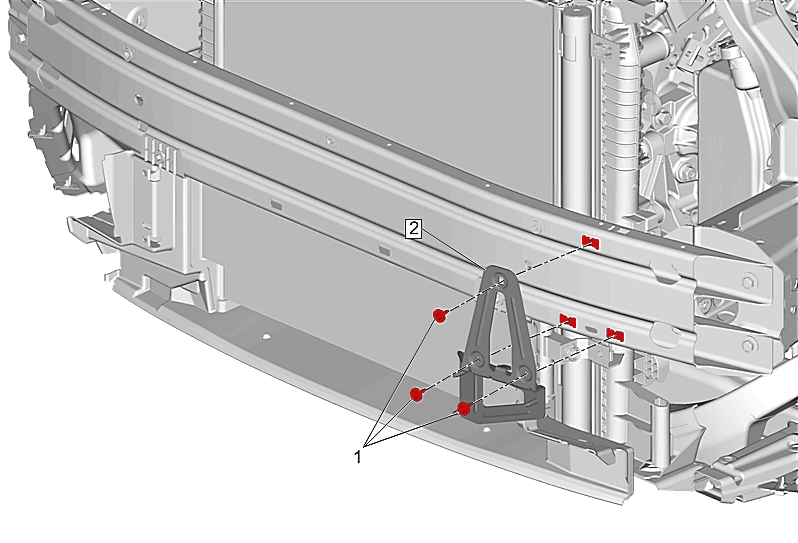

Fig 1: Forward Range Radar Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement
1	Forward Range Radar Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Forward Range Radar Bracket
