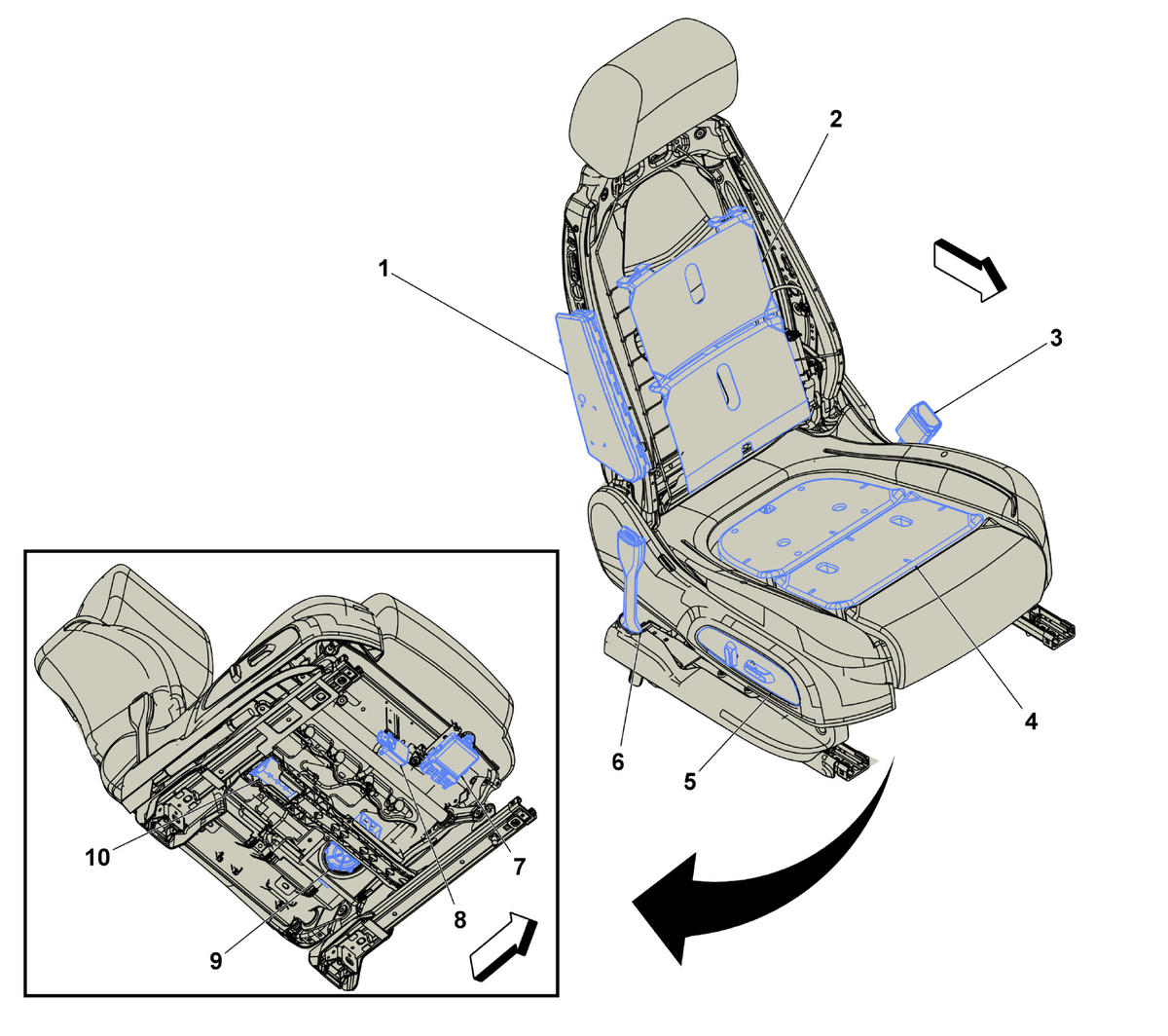

Passenger Seat Components
Passenger Seat Components
| Items |
|---|
| 1: F106P Seat Side Air Bag - Passenger F106P Seat Side Air Bag - Passenger |
| 2: E14C Seat Heating Element - Passenger Back (KA1) E14C Seat Heating Element - Passenger Back (KA1) |
| 3: B153P Seat Belt Buckle - Passenger B153P Seat Belt Buckle - Passenger |
| 4: E14D Seat Heating Element - Passenger Cushion (KA1) E14D Seat Heating Element - Passenger Cushion (KA1) |
| 5: S64P Seat Adjuster Switch - Passenger (AH8/AT9) S64P Seat Adjuster Switch - Passenger (AH8)S65P Seat Lumbar Support Switch - Passenger (AT9) |
| 6: F113P Seat Belt Anchor Pretensioner - Passenger F113P Seat Belt Anchor Pretensioner - Passenger |
| 7: K29 Seat Heating Control Module (KA1) K29 Seat Heating Control Module X1 (KA1)K29 Seat Heating Control Module X2 (KA1) |
| 8: K85 Passenger Presence Module (AL0) K85 Passenger Presence Module |
| 9: M73D Seat Blower Motor - Passenger Cushion (KU9) M73D Seat Blower Motor - Passenger Cushion (KU9) |
| 10: M51P Seat Horizontal Motor - Passenger (AH8) M51P Seat Horizontal Motor - Passenger (AH8) |
