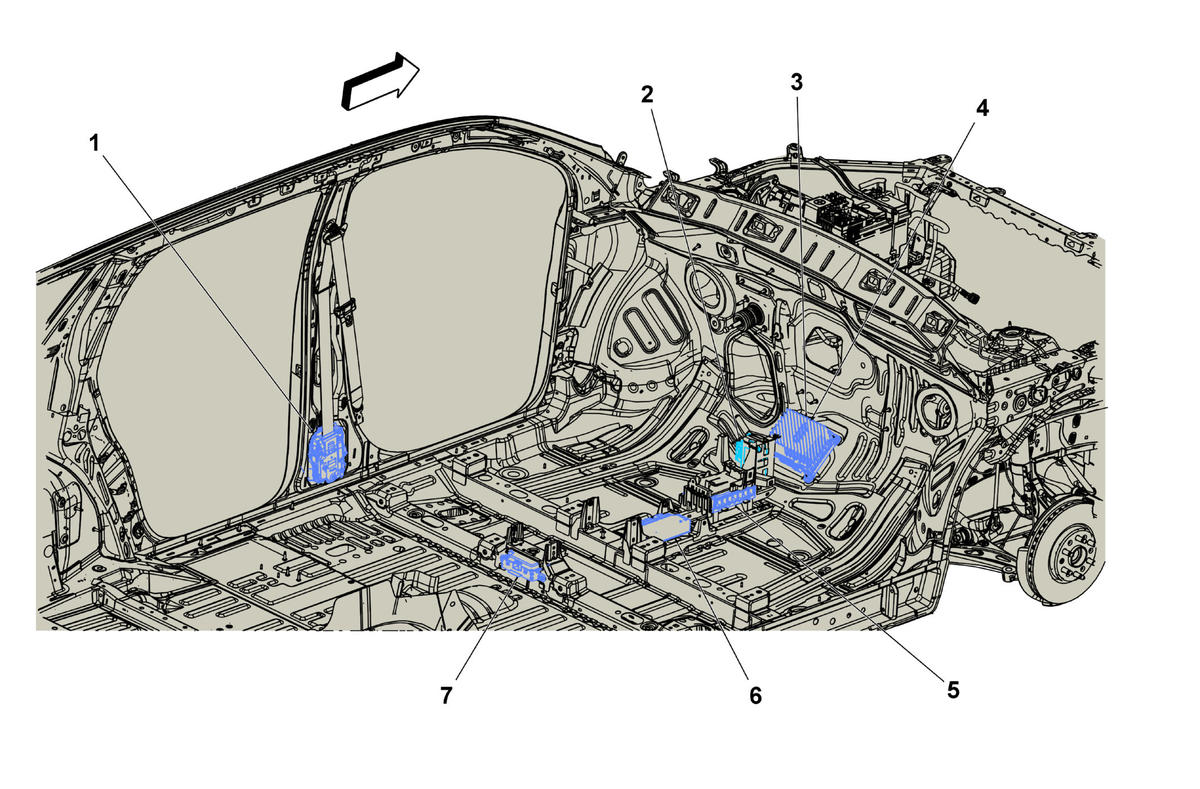

Left Front Side of Passenger Components
Left Front Side of Passenger Components
| Items |
|---|
| 1: F112D Seat Belt Retractor Pretensioner - Driver F112D Seat Belt Retractor Pretensioner - Driver |
| 2: T19 Power Supply Transformer (KL9) T19 Power Supply Transformer (KL9) |
| 3: K108 Active Noise Cancellation Module (UQF) K108 Active Noise Cancellation Module X3 (UQF) |
| 4: T3 Audio Amplifier T3 Audio Amplifier X1 (UQA)T3 Audio Amplifier X1 (UQF)T3 Audio Amplifier X2 (UQA)T3 Audio Amplifier X2 (UQF)T3 Audio Amplifier X3 (UQA)T3 Audio Amplifier X4 (UQA) |
| 5: K9 Body Control Module K9 Body Control Module X1K9 Body Control Module X2K9 Body Control Module X3K9 Body Control Module X4K9 Body Control Module X5K9 Body Control Module X6K9 Body Control Module X7 |
| 6: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1K36 Inflatable Restraint Sensing and Diagnostic Module X2 |
| 7: T1 Accessory DC/AC Power Inverter Module T1 Accessory DC/AC Power Inverter Module (K16)T1 Accessory DC/AC Power Inverter Module (K17) |
