Installation Procedure

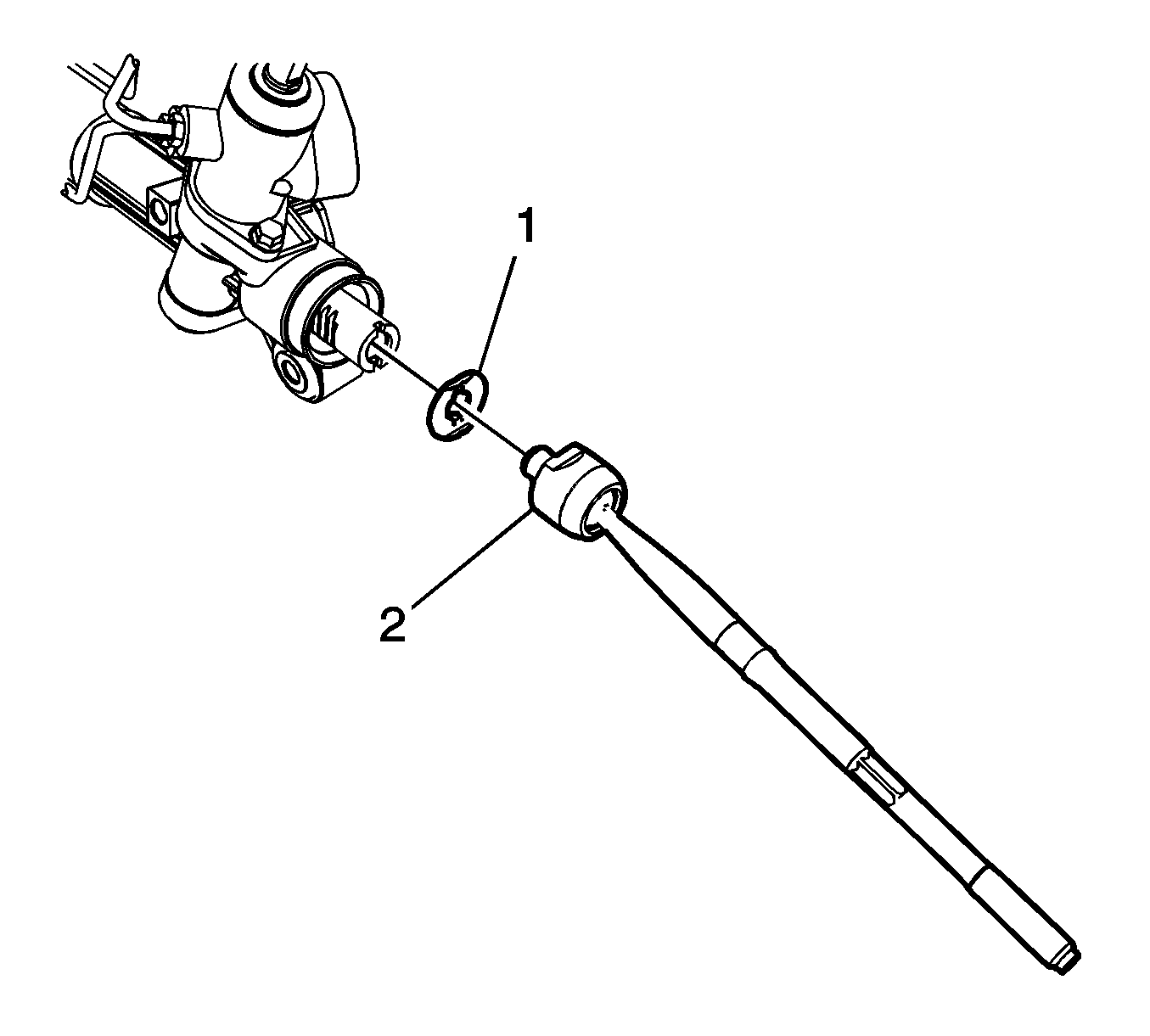

    Fig 1: Identifying Retaining Washer & Steering Gear Inner Tie Rod Housing
    GM1820143Courtesy of GENERAL MOTORS COMPANY
  1. If equipped with a hydraulic power steering gear, position the NEW steering gear rack thrust washer (1).
  2. Start the steering linkage inner tie rod (2) in the steering gear rack.
    3. Fig 2: Steering Linkage Inner Tie Rod
    GM2371634Courtesy of GENERAL MOTORS COMPANY
  3. Place a soft jaw pipe wrench or soft jaw pliers on the flat surface of the steering gear rack (3) between the steering gear housing (4) and the steering linkage inner tie rod housing (2).
    4. CAUTION:

    Refer to Component Fastener Tightening Caution .

  4. Place a crow foot wrench on the flats of the steering linkage inner tie rod housing (2) and tighten to 105 N.m (77 lb ft).
  5. If equipped with a hydraulic power steering gear, bend the tabs on the steering gear rack thrust washer to secure the steering linkage inner tie rod.
  6. Install Steering Gear Boot Steering Gear Boot Replacement
  7. Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
