Front Seat Belt Guide Adjuster Replacement

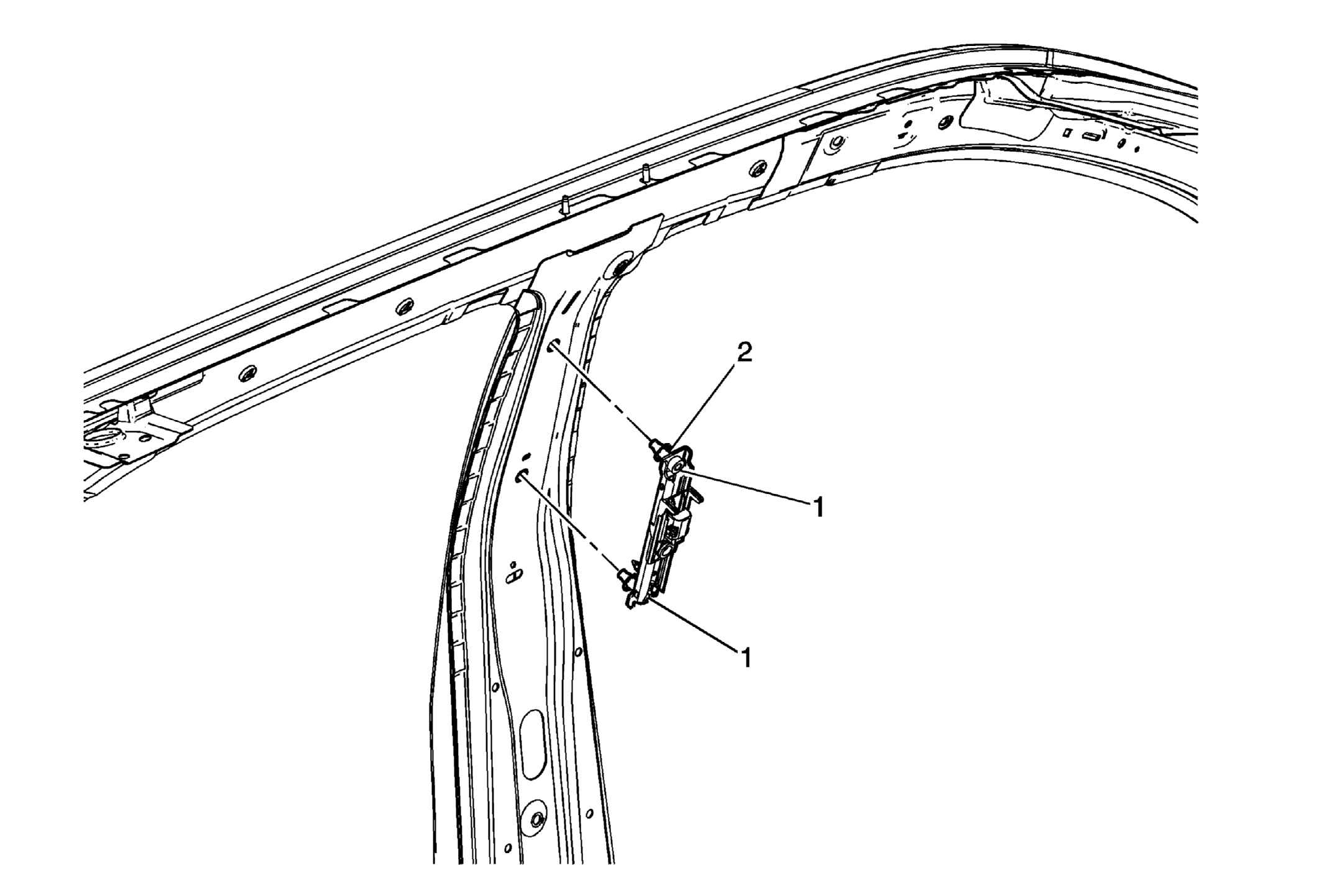

Fig 1: Front Seat Belt Guide Adjuster

GM2244654

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the center pillar upper trim. Refer to Center Pillar Upper Trim Panel Replacement .
Remove the front seat retractor side belt fastener. Refer to Driver or Passenger Seat Retractor Side Belt Replacement .

1

Front Seat Shoulder Belt Guide Adjuster Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)

2

Front Seat Shoulder Belt Guide Adjuster Assembly
