Steering Wheel Controls

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

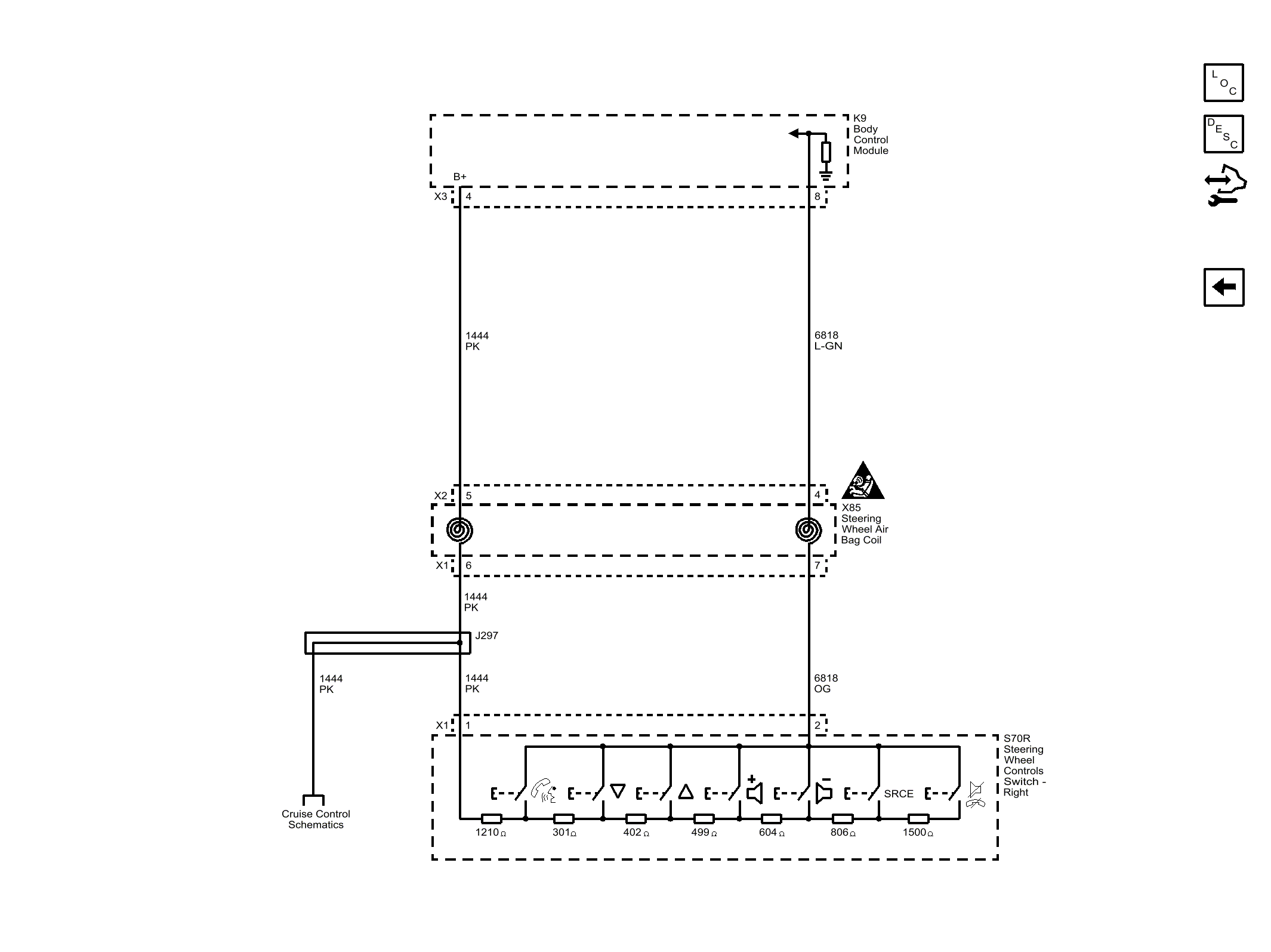

Fig 1: Steering Wheel Controls
GM3804306Courtesy of GENERAL MOTORS COMPANY
