Radio Display (without UHQ or UFU)
Radio Display (without UHQ or UFU)
WARNING:
This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

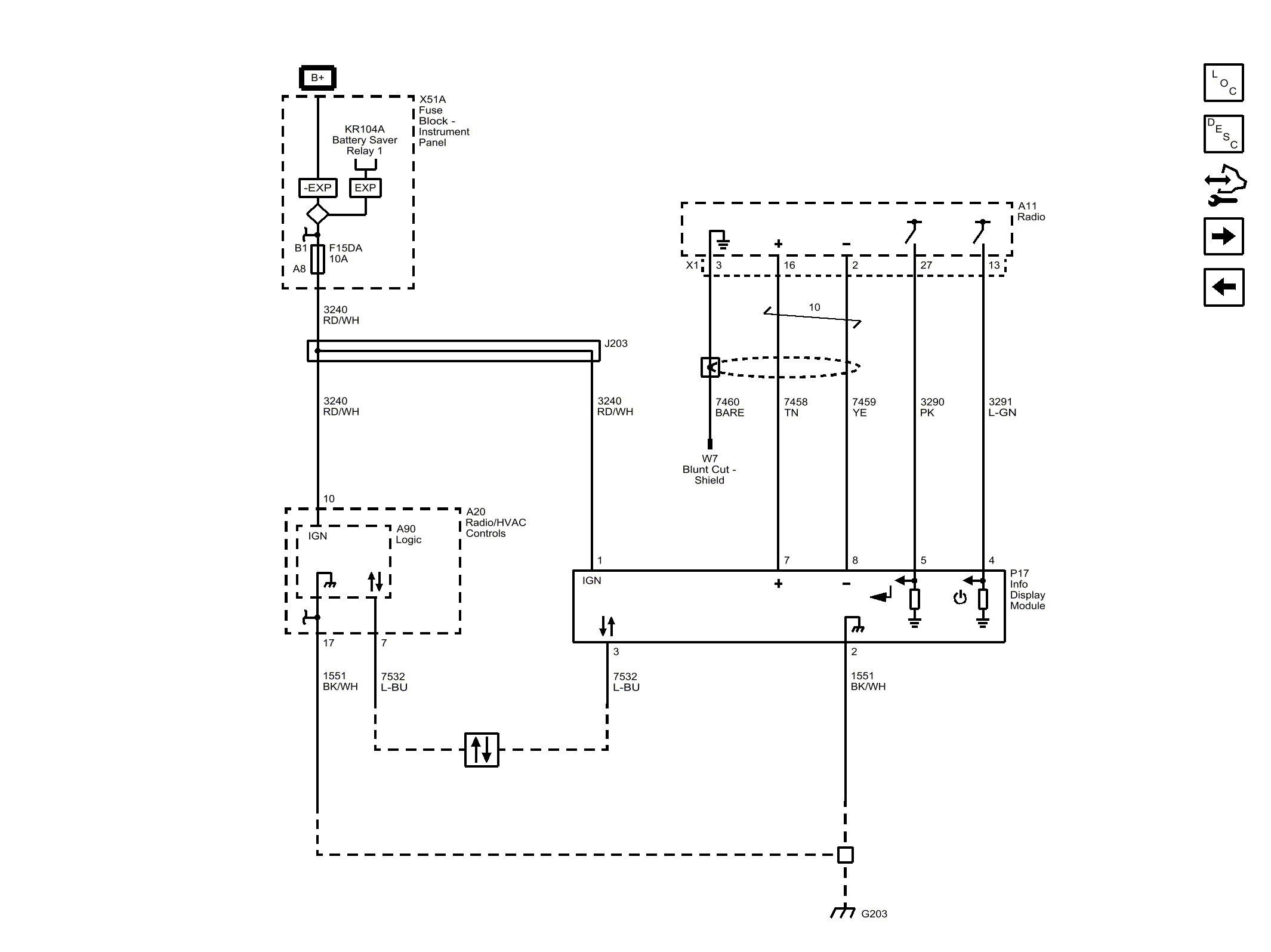

Fig 1: Radio Display (without UHQ or UFU)
Courtesy of GENERAL MOTORS COMPANY
