Radio, Video, and Audio Player and Navigation Information Display Replacement
WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

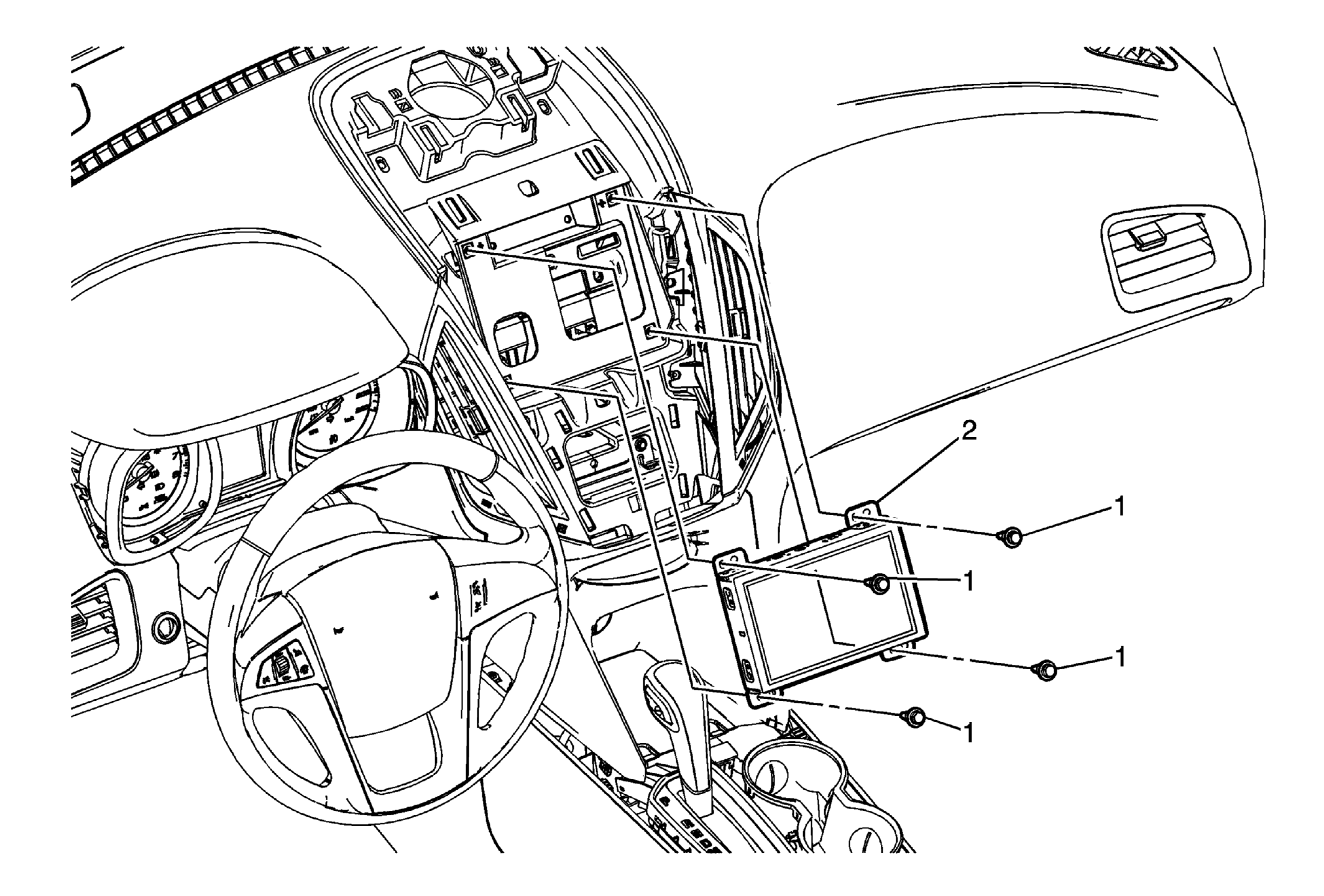

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radio control assembly. Refer to Radio Control Assembly Replacement . |
|
| 1 | Radio, Video, Audio Disc Player, and Navigation Display Screws (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Radio, Video, Audio Disc Player, and Navigation Display Procedure Refer to Control Module References for programming and set up information. |
