Radio Speaker Amplifier Replacement

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

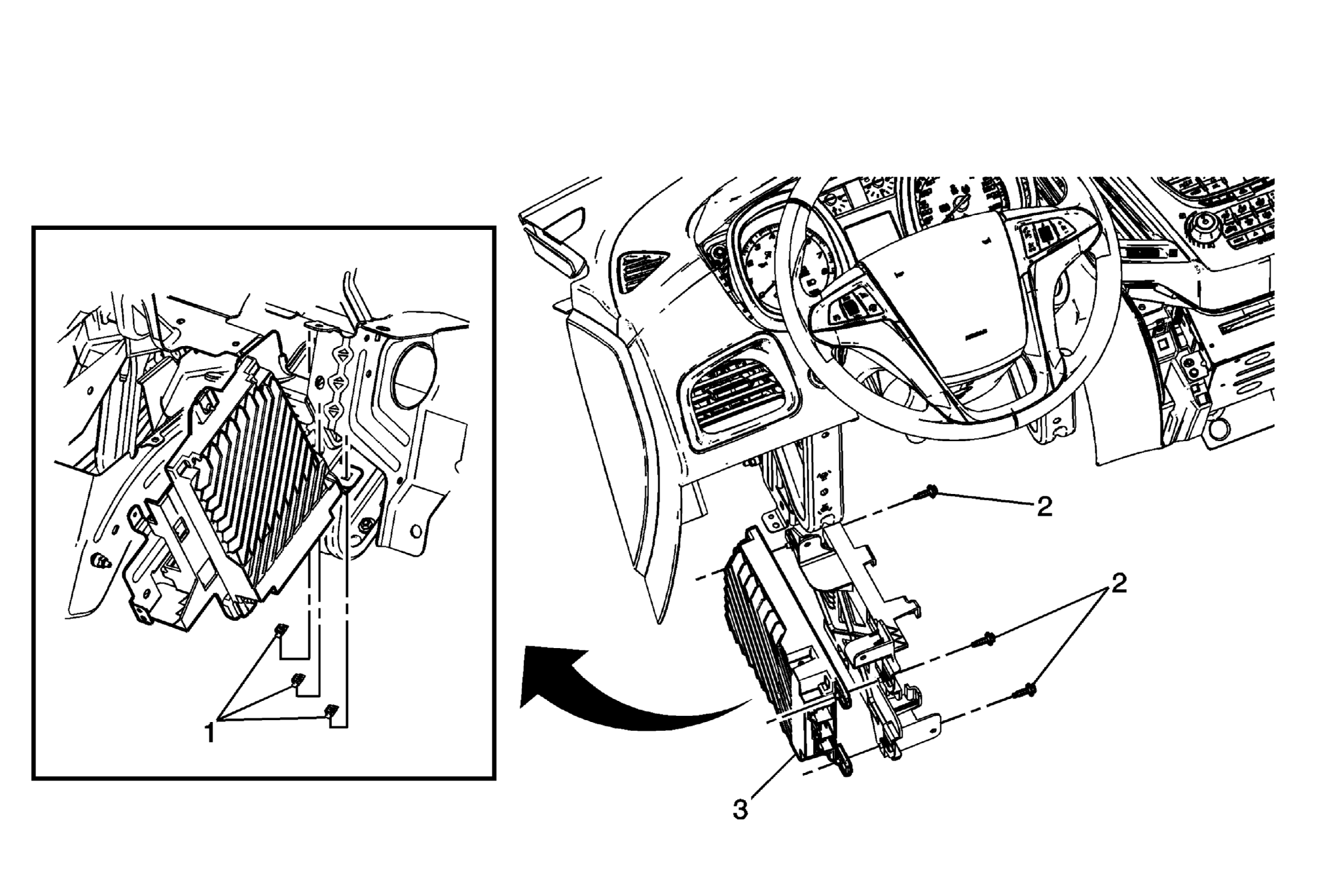

Fig 1: Radio Speaker Amplifier

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument insulator panel. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Equinox)Instrument Panel Insulator Panel Replacement - Left Side (Terrain) Remove the driver knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox)Driver Knee Bolster Reinforcement Replacement (Terrain)
1	Amplifier Bracket Push On Nuts (Qty: 3)
2	Radio Speaker Amplifier Bolts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Radio Speaker Amplifier Procedure Disconnect the electrical connectors.
