Audio/Video Disc Player Adapter Replacement
WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

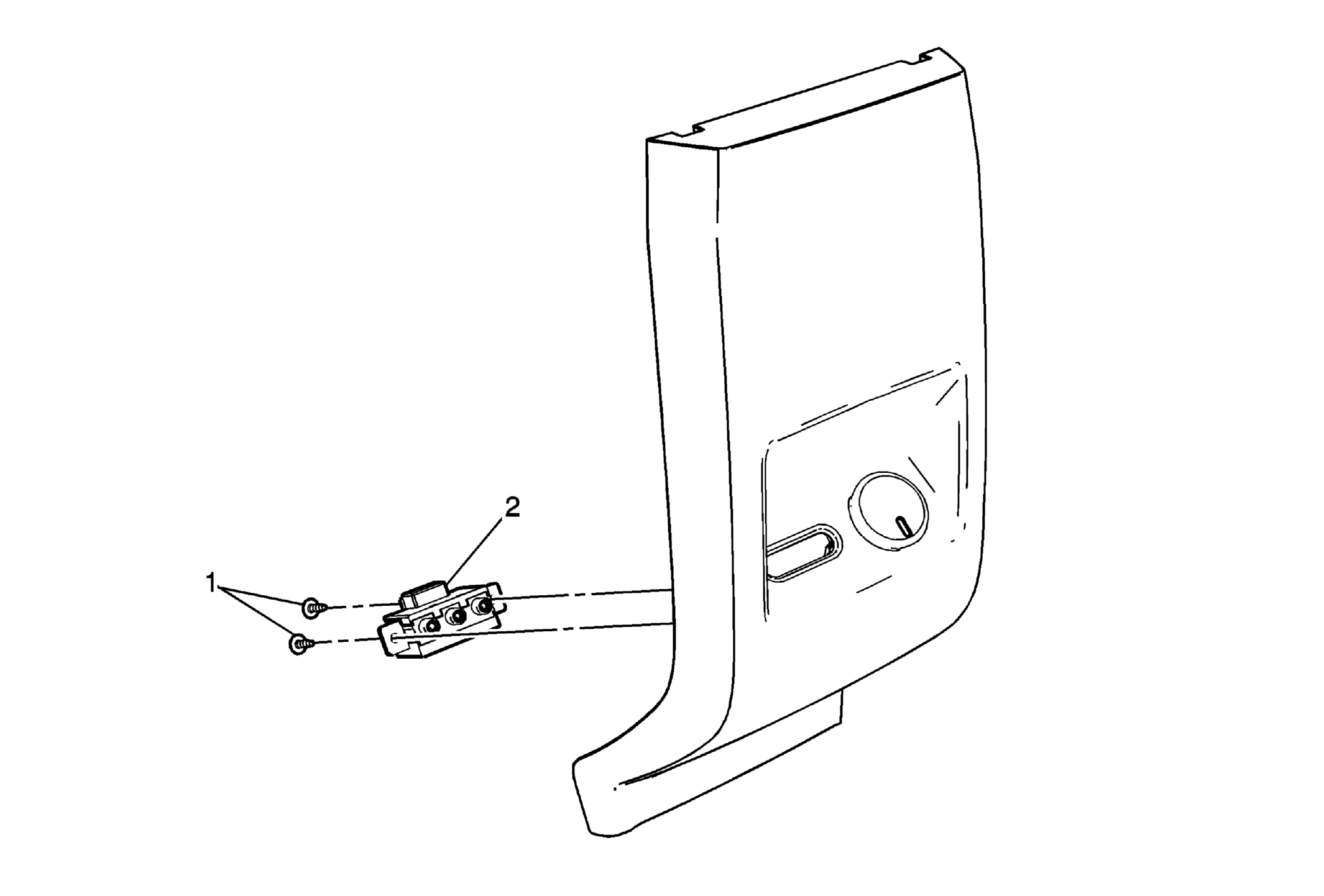

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement . |
|
| 1 | Audio Video Disc Player Adapter Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Audio Video Disc Player Adapter |
