Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Replacement

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

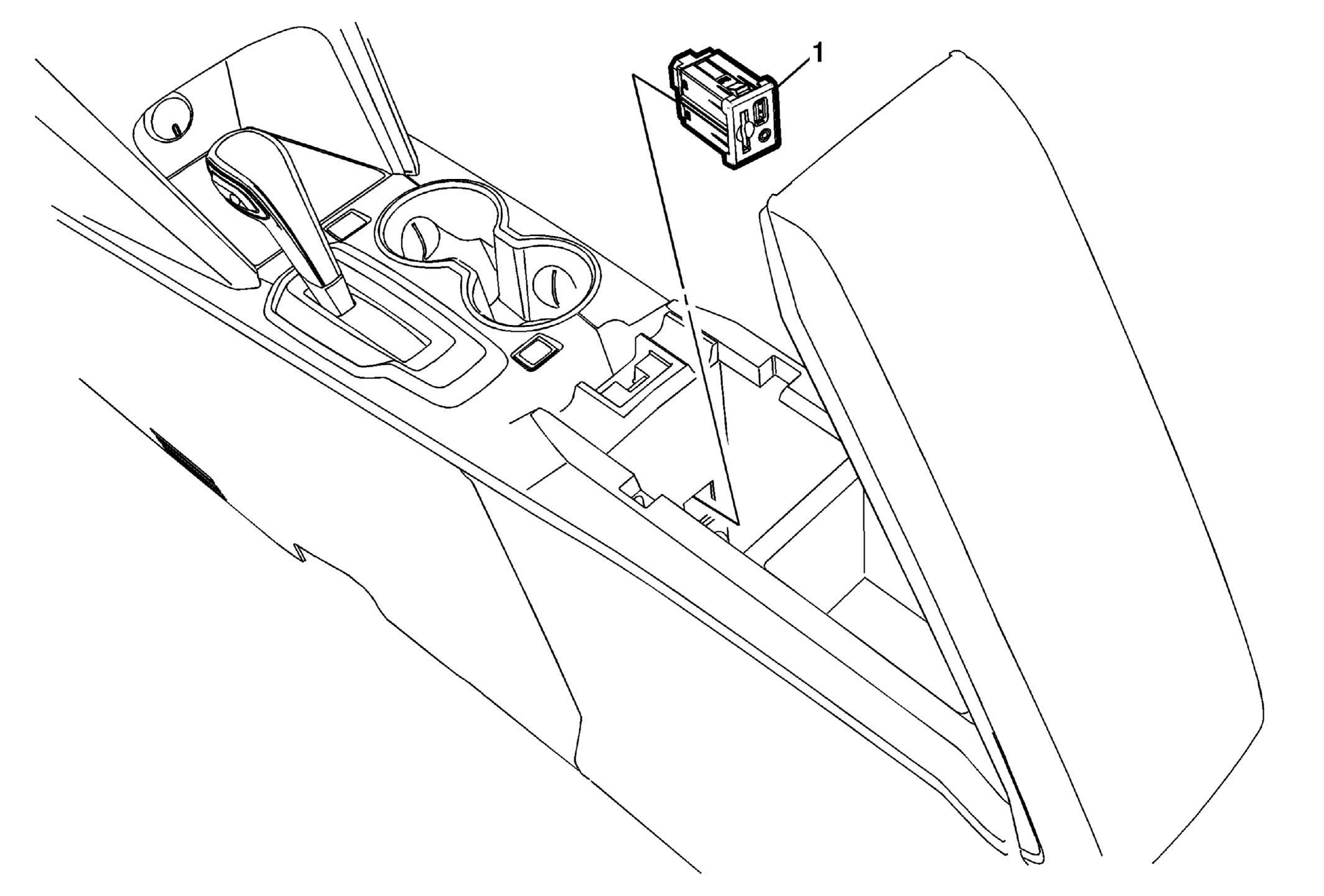

Fig 1: Audio Disc Player, USB, Auxiliary In And Memory Card Receptacle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Audio Disc Player, USB, Auxiliary In, and Memory Card Receptacle Procedure Open arm rest and using a small flat bladed tool, release the receptacle. Disconnect the electrical connector.
