Headlamp Automatic Control Ambient Light Sensor Replacement
WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

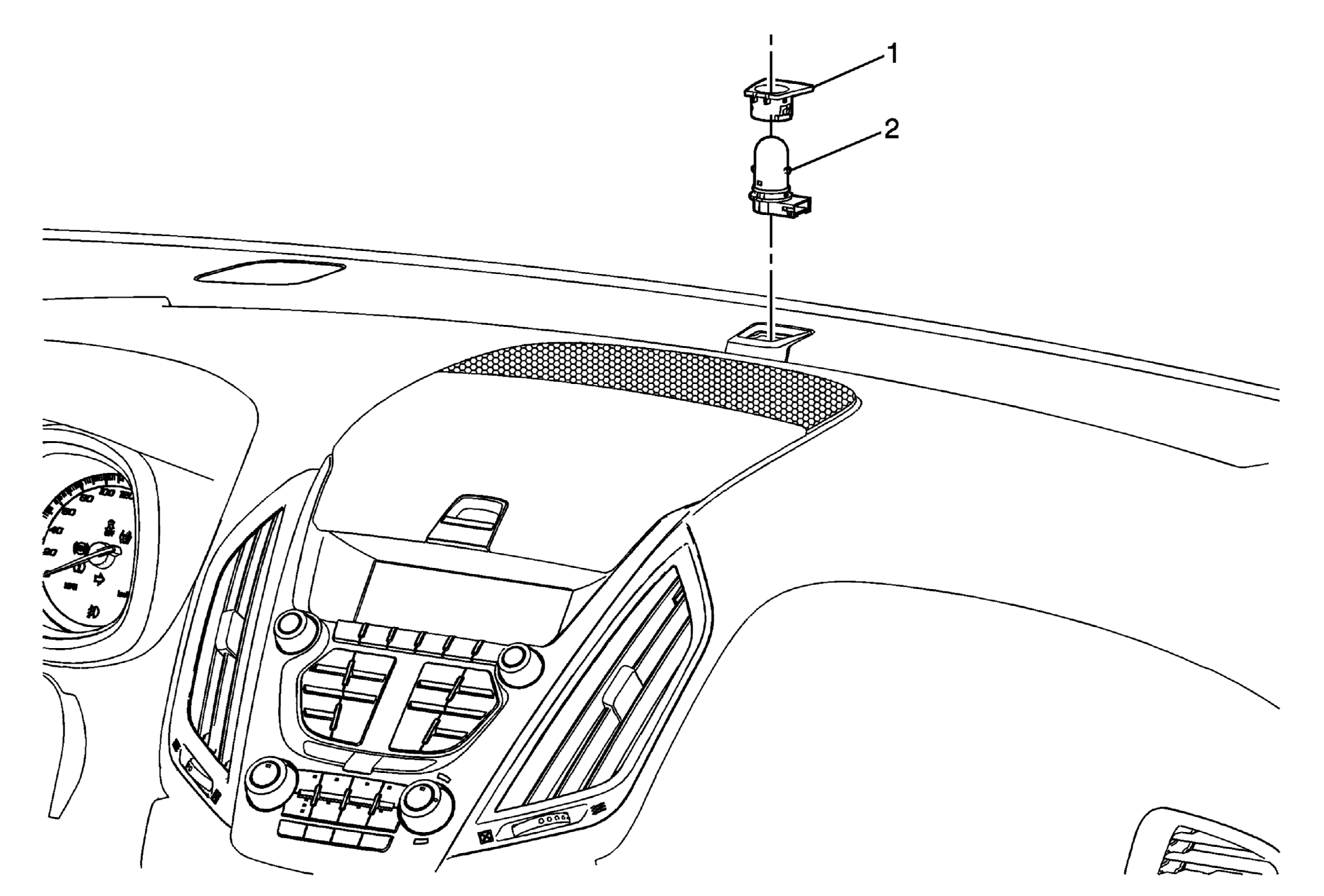

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Accessory Trim Plate Refer to Instrument Panel Accessory Trim Plate Replacement (Equinox)Instrument Panel Accessory Trim Plate Replacement (Terrain) . |
| 2 | Headlamp Automatic Control Ambient Light Sensor Procedure Depress tabs to remove sensor from trim plate. |
