Dimmer Switch Replacement

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

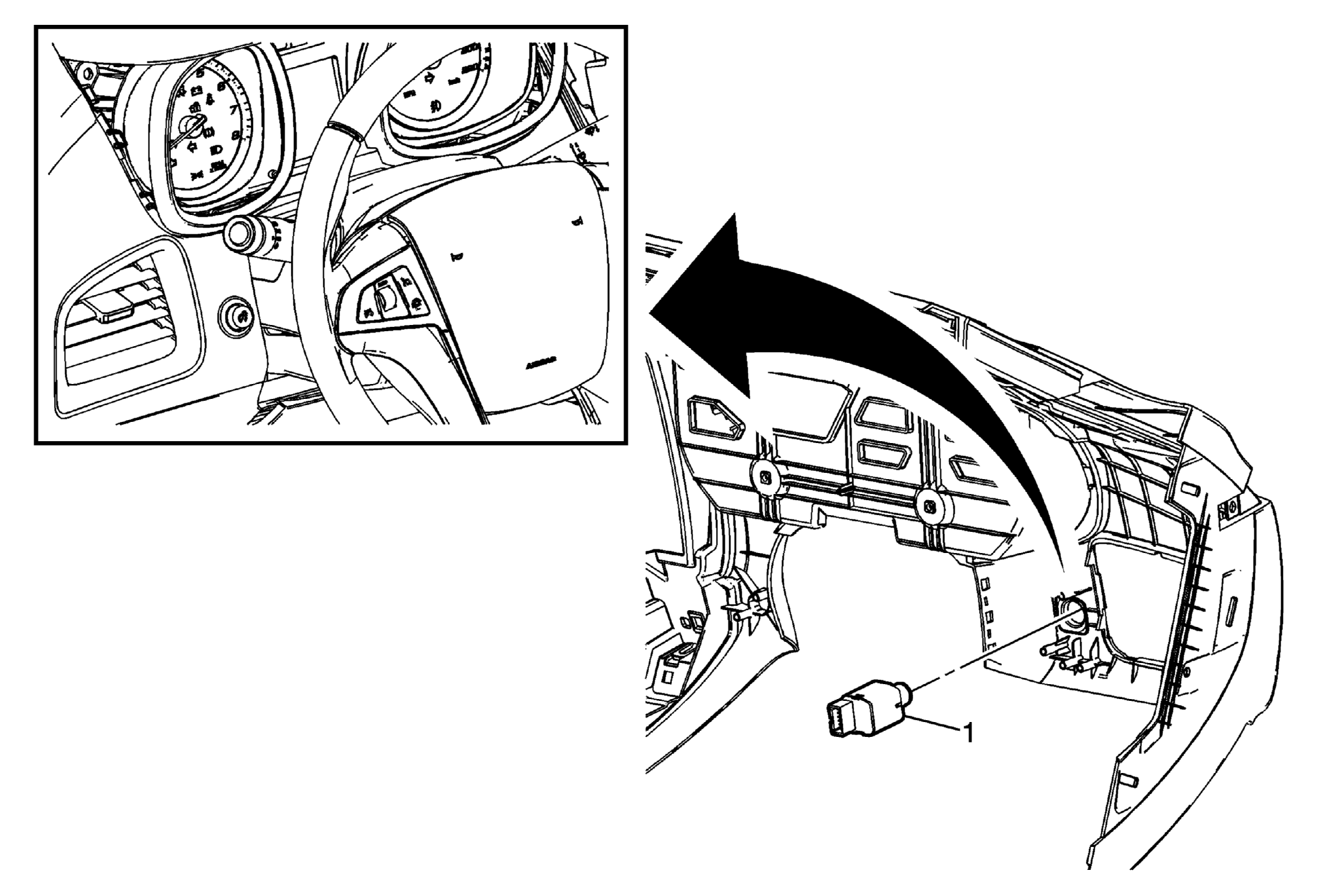

Fig 1: Instrument Panel Lamp Dimmer Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel insulator, left side. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Equinox)Instrument Panel Insulator Panel Replacement - Left Side (Terrain) Remove the driver knee bolster panel. Refer to Driver Knee Bolster Panel Replacement (Equinox)Driver Knee Bolster Panel Replacement (Terrain) Remove the driver knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox)Driver Knee Bolster Reinforcement Replacement (Terrain)
1	Instrument Panel Lamp Dimmer Switch Procedure Disconnect the electrical connector. From underneath, carefully insert a long appropriate tool into the switch bracket from the inner side of the instrument panel and release the tabs fastening the dimmer switch to the dimmer switch bracket. At the same time, push forward on the switch from a surface side to separate it from the tabs. Use care not to damage the bracket while releasing the fastening tabs.

Callout

Component Name

Preliminary Procedure

Remove the instrument panel insulator, left side. Refer to Instrument Panel Insulator Panel Replacement - Left Side (Equinox)Instrument Panel Insulator Panel Replacement - Left Side (Terrain)
Remove the driver knee bolster panel. Refer to Driver Knee Bolster Panel Replacement (Equinox)Driver Knee Bolster Panel Replacement (Terrain)
Remove the driver knee bolster reinforcement. Refer to Driver Knee Bolster Reinforcement Replacement (Equinox)Driver Knee Bolster Reinforcement Replacement (Terrain)

Instrument Panel Lamp Dimmer Switch

Procedure

Disconnect the electrical connector.
From underneath, carefully insert a long appropriate tool into the switch bracket from the inner side of the instrument panel and release the tabs fastening the dimmer switch to the dimmer switch bracket. At the same time, push forward on the switch from a surface side to separate it from the tabs. Use care not to damage the bracket while releasing the fastening tabs.
