Courtesy Lamp Replacement
WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

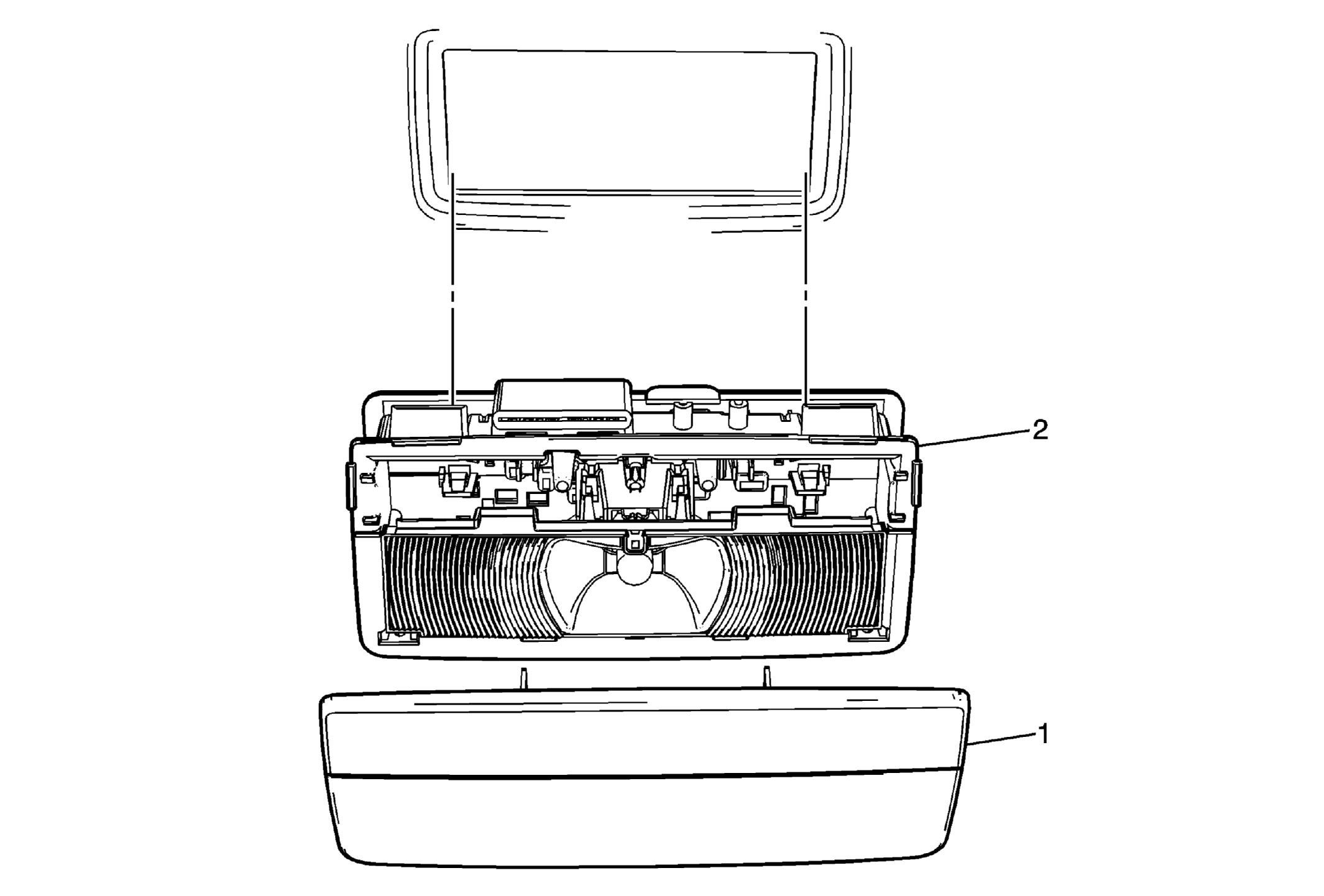

| Callout |
Component Name |
| 1 |
Courtesy Lamp Lens and Bezel
Procedure
Using a nylon flat bladed tool release the lens and bezel. |
| 2 |
Courtesy Lamp
Procedure
Release the retaining tabs and remove the courtesy lamp from the headliner. |
