Radiator Replacement

WARNING: This page is about a different car, the 2015 GMC Terrain and 2015 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

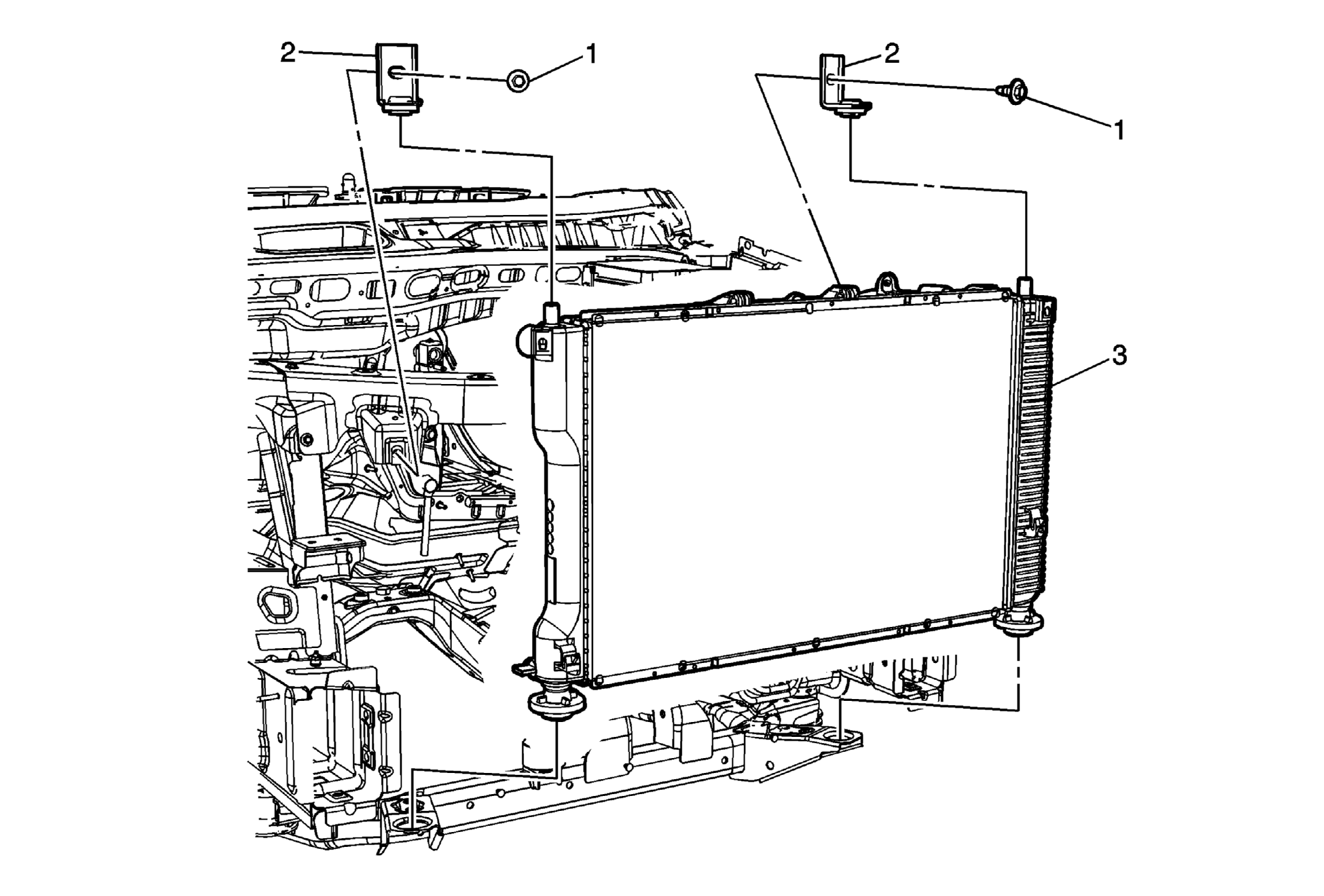

Fig 1: Radiator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (LFX) Cooling System Draining and Filling (GE 47716) Cooling System Draining and Filling (LEA) . Remove radiator hose inlet. Refer to Radiator Inlet Hose Replacement (LEA) Radiator Inlet Hose Replacement (LFX) . Remove radiator hose outlet. Refer to Radiator Outlet Hose Replacement (LEA) Radiator Outlet Hose Replacement (LFX) . Remove the condenser. Refer to Air Conditioning Condenser Replacement . Remove the engine coolant fan shroud. Refer to Engine Coolant Fan Shroud Replacement (LEA) . Disconnect transmission oil cooler lines from radiator.
1	Radiator Upper Radiator Bracket Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
2	Radiator Upper Radiator Bracket (Qty: 2)
3	Radiator
