HVAC System and Center Console Components

Items
1. B7E Air Temperature Sensor - Duct Right Lower (C68) B7E Air Temperature Sensor - Duct Right Lower
2. B7J Air Temperature Sensor - Duct Right Upper (C68) B7J Air Temperature Sensor - Duct Right Upper
3. M6 Air Temperature Door Actuator M6 Air Temperature Door Actuator
4. M8 Blower Motor M8 Blower Motor
5. K8 Blower Motor Control Module K8 Blower Motor Control Module X1 K8 Blower Motor Control Module X2
6. B39 A/C Evaporator Temperature Sensor B39 A/C Evaporator Temperature Sensor
7. M46 Air Recirculation Door Actuator M46 Air Recirculation Door Actuator
8. M37 Mode Door Actuator M37 Mode Door Actuator
9. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (without MCR)X83 Auxiliary Audio Input X2 (without MCR)
10. X83 Auxiliary Audio Input X83 Auxiliary Audio Input X1 (without MCR)X83 Auxiliary Audio Input X2 (without MCR)
11. X80A Accessory Power Receptacle - Center Console 1 X80A Accessory Power Receptacle - Center Console 1
12. E28 Center Console Compartment Lamp (LT or LTZ or SLE2 or SLT) E28 Center Console Compartment Lamp
13. X80B Accessory Power Receptacle - Center Console 2 X80B Accessory Power Receptacle - Center Console 2
14. X82 Audio/Video Input Adapter (UWG) X83 Auxiliary Audio Input (UWG)

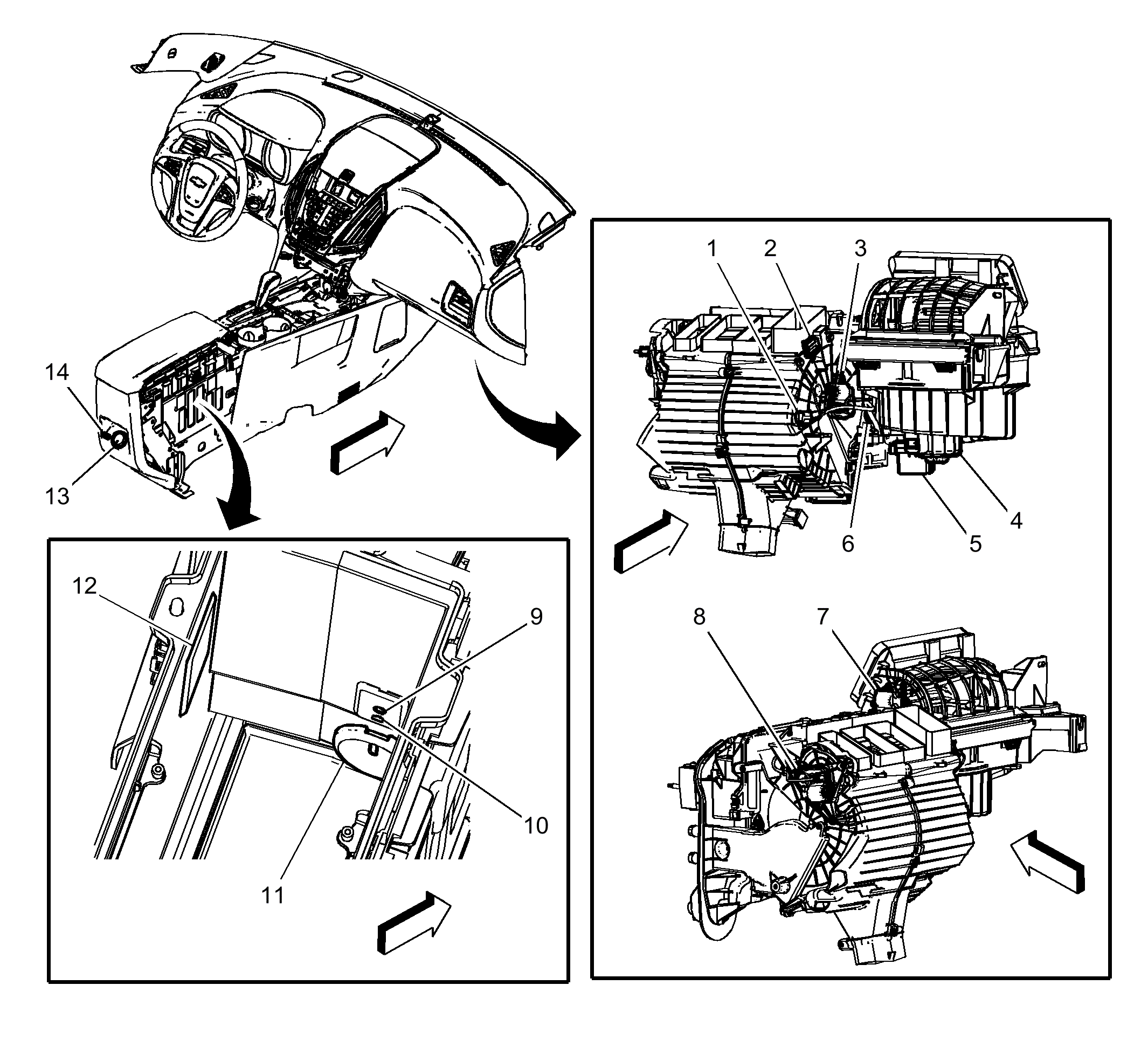

Fig 1: HVAC System and Center Console Components

Courtesy of GENERAL MOTORS COMPANY
