Fuel Pump Power Control Module Replacement

WARNING: This page is about a different variant/trim than selected.

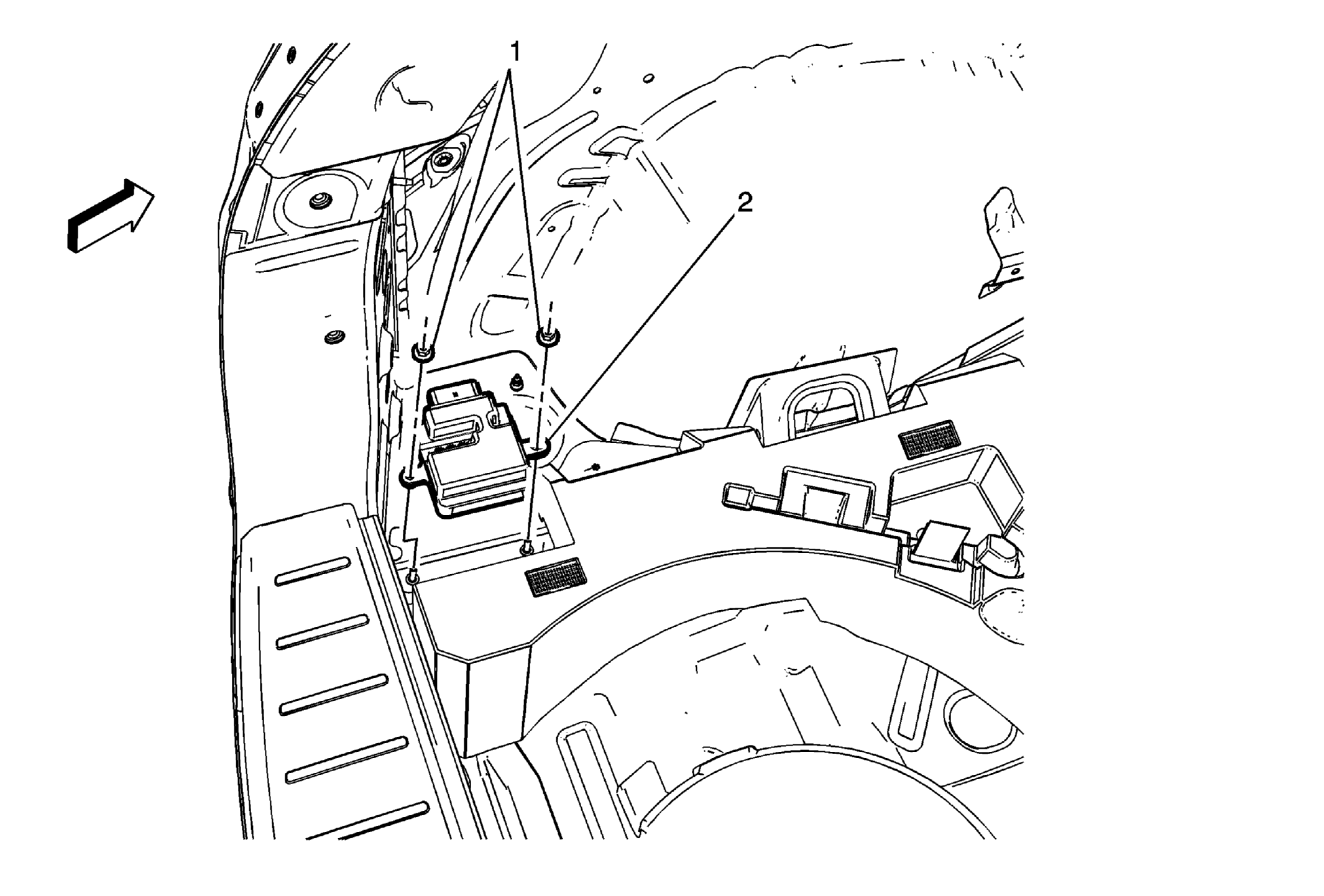

Fig 1: Fuel Pump Power Control Module
GM2898971Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Fuel Pump Power Control Module Fasteners (Qty: 2)
CAUTION:

Refer to Fastener Caution


Tighten
8 N.m (71 lb in)
2 Fuel Pump Power Control Module

Procedure

  1. Open the spare tire compartment lid.
  2. Disconnect the electrical connector.
  3. If replacing, reprogram the module. Refer to Control Module References
