Module Power, Grounds, and Subsystem References (1 of 4)

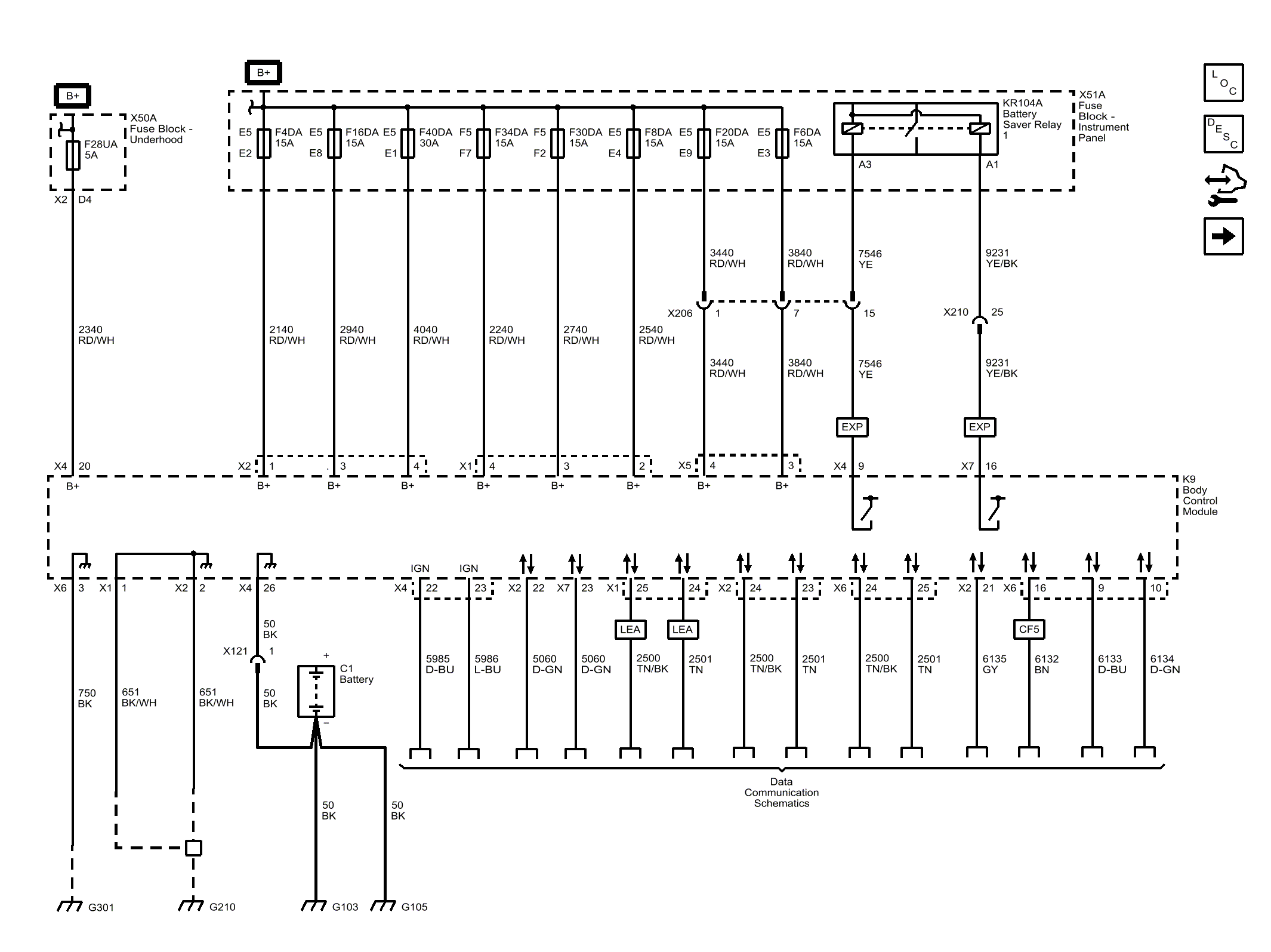

Fig 1: Module Power, Grounds, and Subsystem References (1 of 4)

GM4069740

Courtesy of GENERAL MOTORS COMPANY
