Brake Pedal Position Sensor Replacement

WARNING: This page is about a different car, the 2017 GMC Canyon and 2017 Chevrolet Colorado. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Brake system does not use a brake switch, stoplight switch or brakelight switch. System uses a Brake Pedal Position Sensor to control these functions.

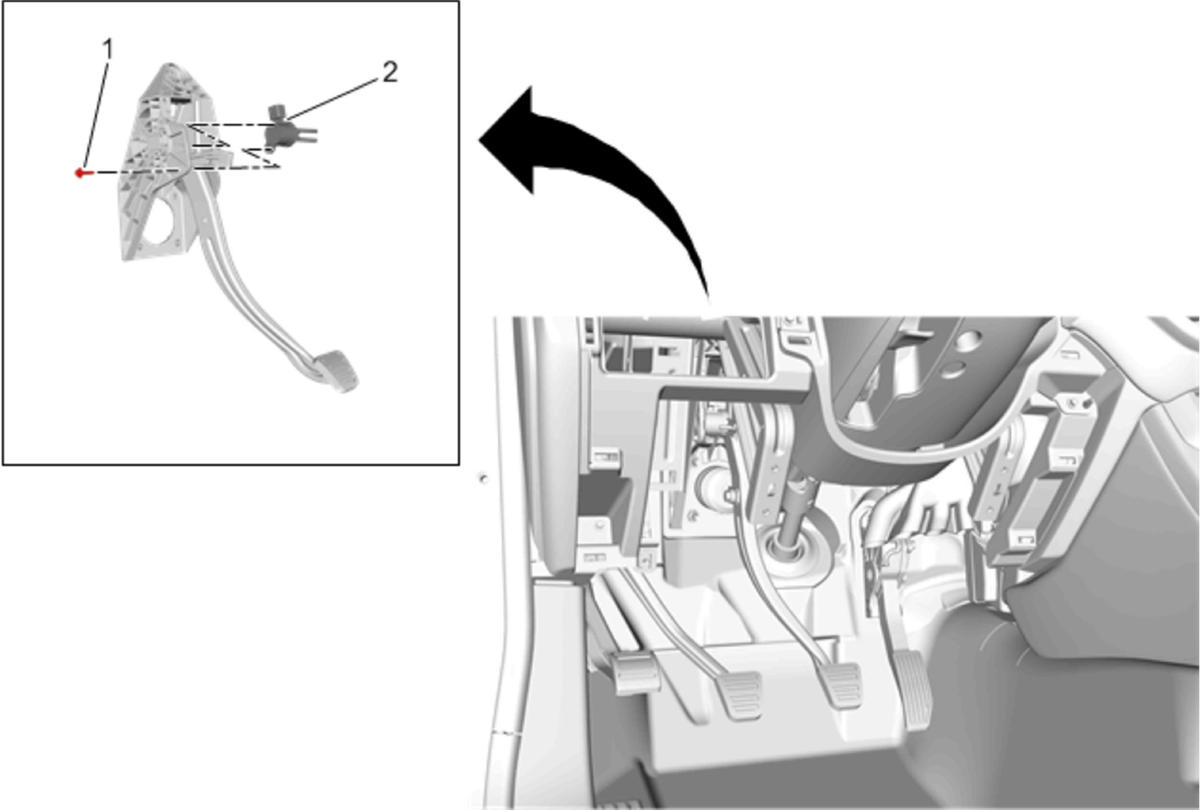

Fig 1: Brake Pedal Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel knee bolster outer deflector. Refer to Instrument Panel Knee Bolster Deflector Replacement .
1	Brake Pedal Position Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 3 N.m (27 lb in)
2	Brake Pedal Position Sensor Procedure Disconnect the electrical connector. After the installation is complete, calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .

Callout

Component Name

Preliminary Procedures
Remove the instrument panel knee bolster outer deflector. Refer to Instrument Panel Knee Bolster Deflector Replacement .

Brake Pedal Position Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
3 N.m (27 lb in)

Brake Pedal Position Sensor

Procedure

Disconnect the electrical connector.
After the installation is complete, calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
