Accessory Wakeup and Communications Enable

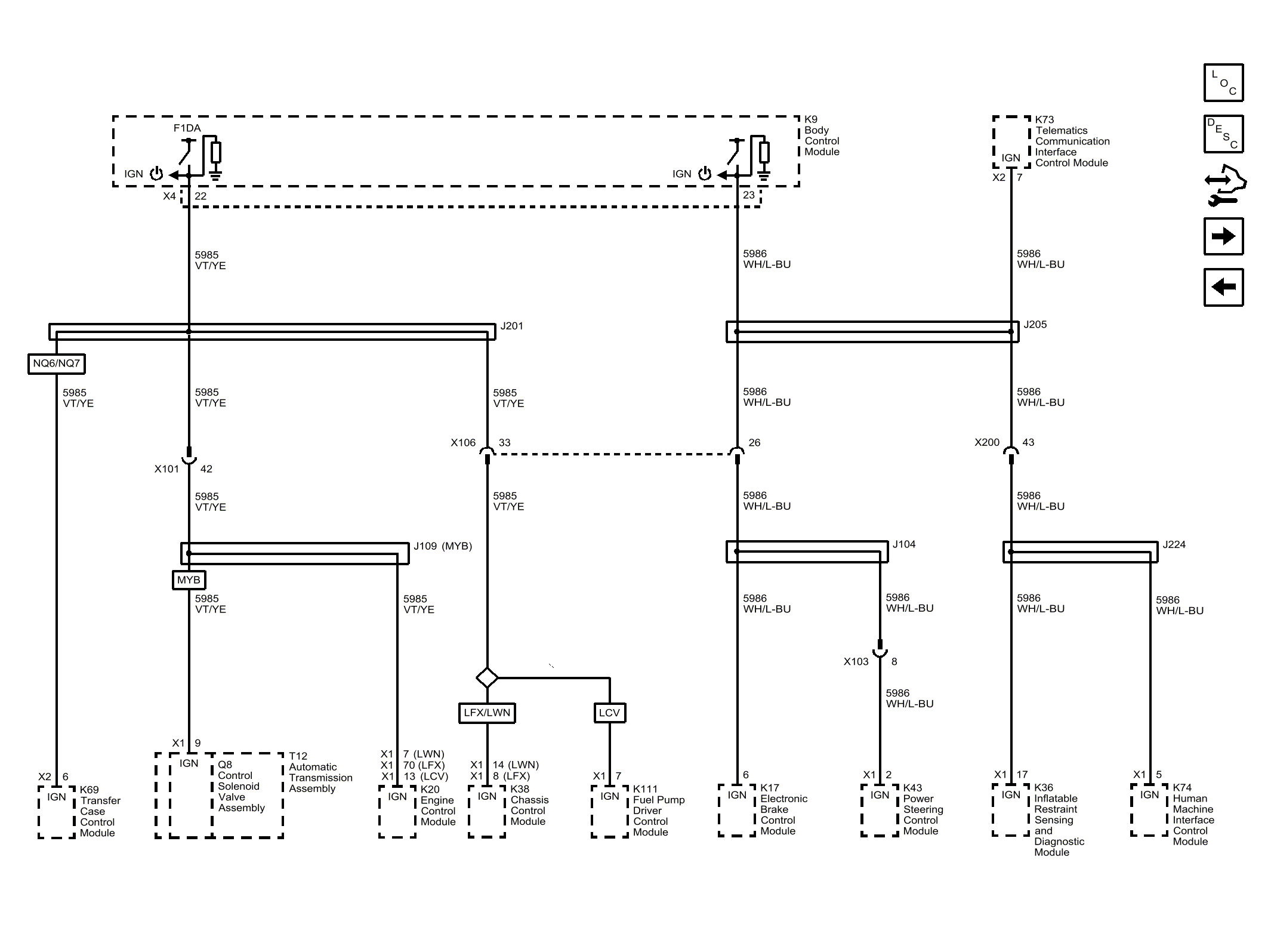

Fig 1: Accessory Wakeup and Communications Enable

GM4117674

Courtesy of GENERAL MOTORS COMPANY
