Installation Procedure

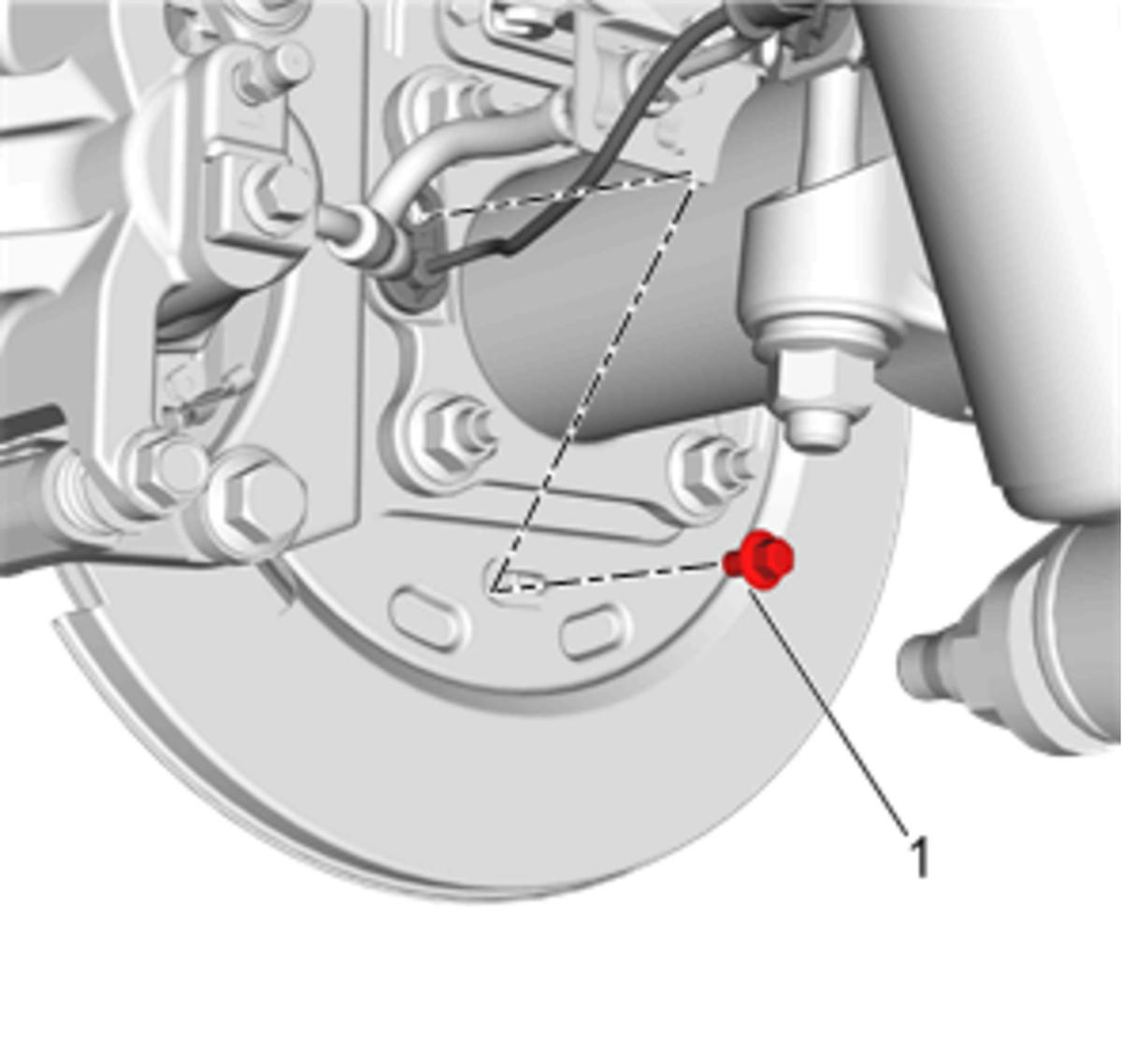

    Fig 1: Rear Wheel Speed Sensor Bolt
    GM3683667Courtesy of GENERAL MOTORS COMPANY
  1. Install the rear wheel speed sensor to the rear axle.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the rear wheel speed sensor bolt (1) and tighten to 9 N.m (80 lb in).

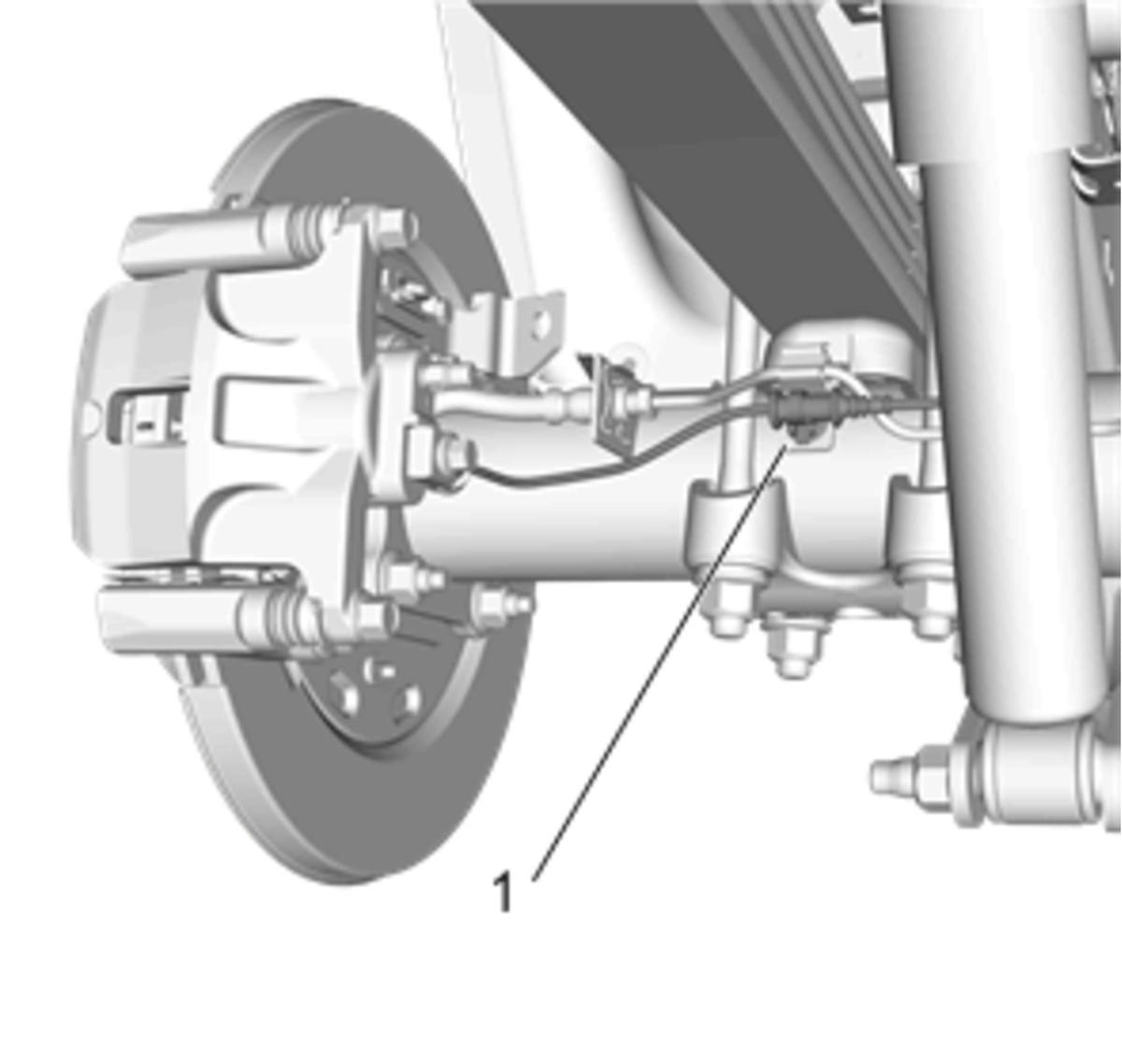

    3. Fig 2: Wheel Speed Sensor Harness Clip
    GM3683666Courtesy of GENERAL MOTORS COMPANY
  3. Install the wheel speed sensor harness clip (1) to the rear axle.

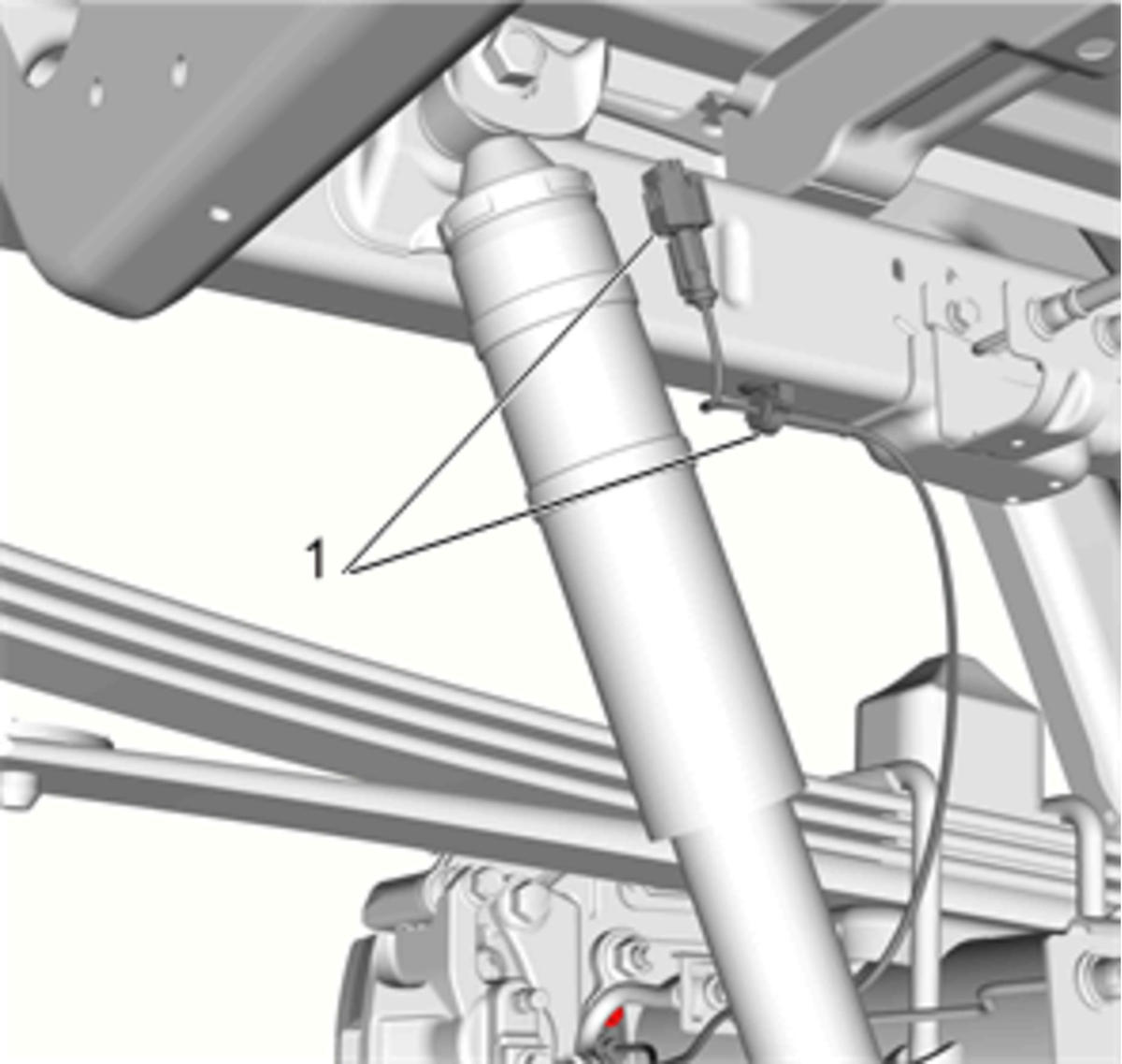

    4. Fig 3: Retaining Clips
    GM3683665Courtesy of GENERAL MOTORS COMPANY
  4. Install the wheel speed sensor harness to the retaining clips (1) on the vehicle frame.
  5. Connect the wheel speed sensor harness electrical connector.
