Rear Side Door Latch Control Replacement

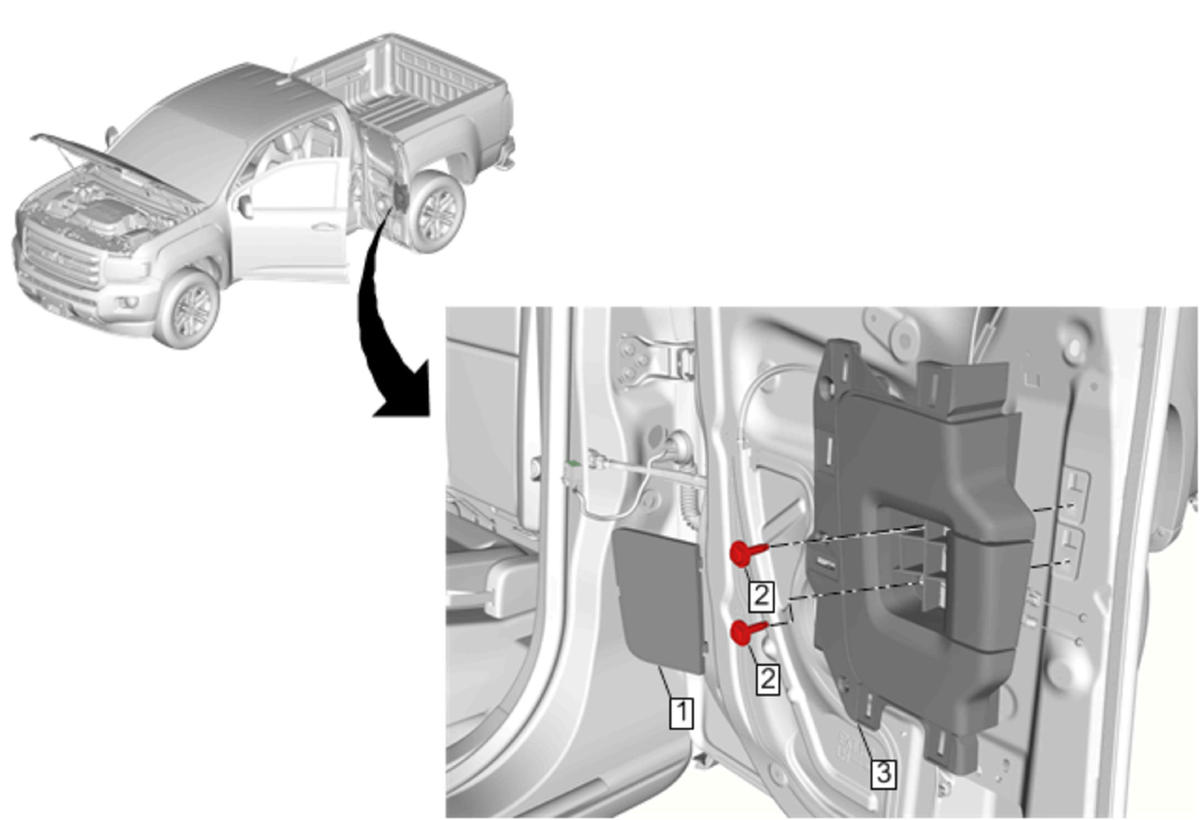

Fig 1: Rear Side Door Latch Control

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Rear Side Door Trim Replacement (Crew Cab)Rear Side Door Trim Replacement (Extended Cab)
1	Rear Side Door Latch Control Cover
2	Rear Side Door Latch Control Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  11 N.m (97 lb in)
3	Rear Side Door Latch Control Assembly Procedure  Disconnect the rear side door upper and lower latch cables from the latch control assembly.
