Endgate Lock Cylinder Replacement

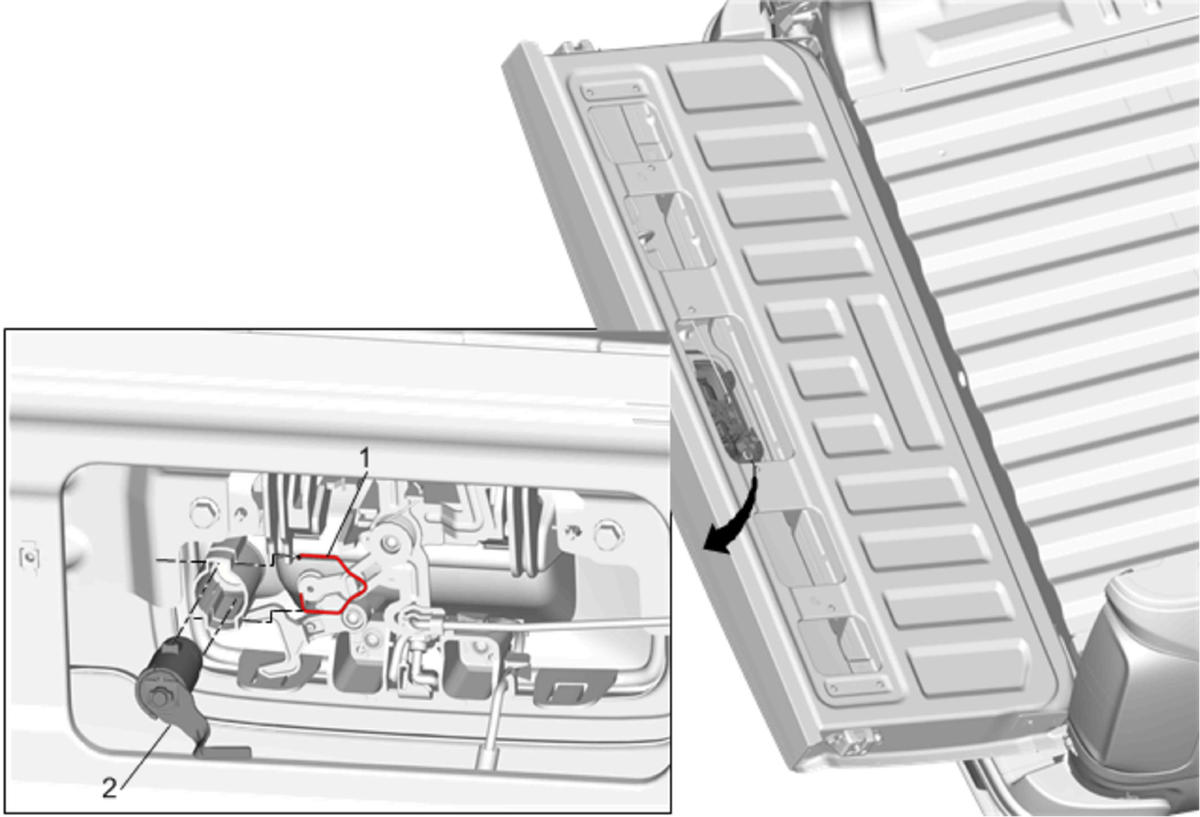

Fig 1: Endgate Lock Cylinder
GM3762270Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the pickup box endgate access hole cover panel. Refer to Pickup Box Endgate Access Hole Cover Panel Replacement
1 Endgate Lock Cylinder Case Spring Retainer
2 Endgate Lock Cylinder
NOTE:

Code new cylinder as needed.
