Endgate Handle Replacement

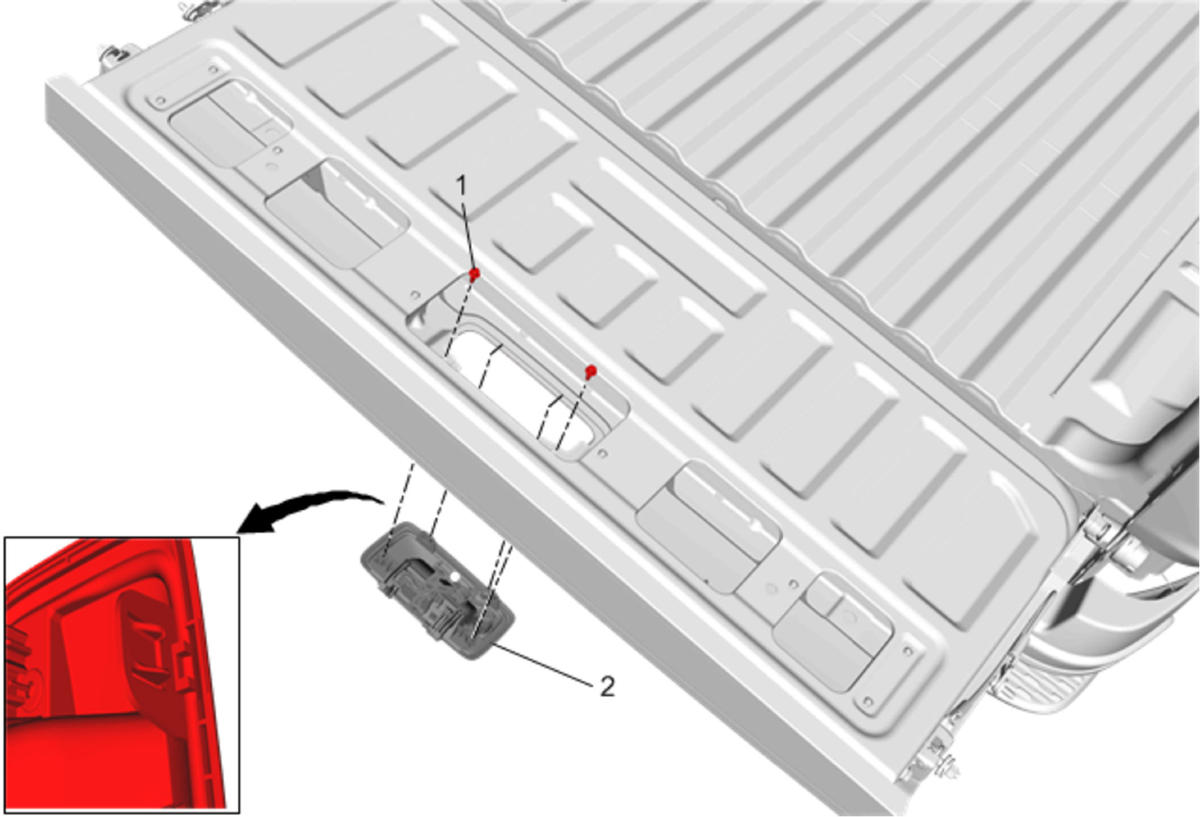

Fig 1: Endgate Handle

GM3785133

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure

Remove the pickup box endgate access hole cover. Refer to Pickup Box Endgate Access Hole Cover Panel Replacement .
Remove the rearview driver information camera. Refer to Rearview Driver Information Camera Replacement

1

Endgate Handle Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9 N.m (80 lb in)

2

Endgate Handle Assembly

NOTE:

Disconnect the actuator rods.
Release the lower retainer tabs
