Disc Player Replacement

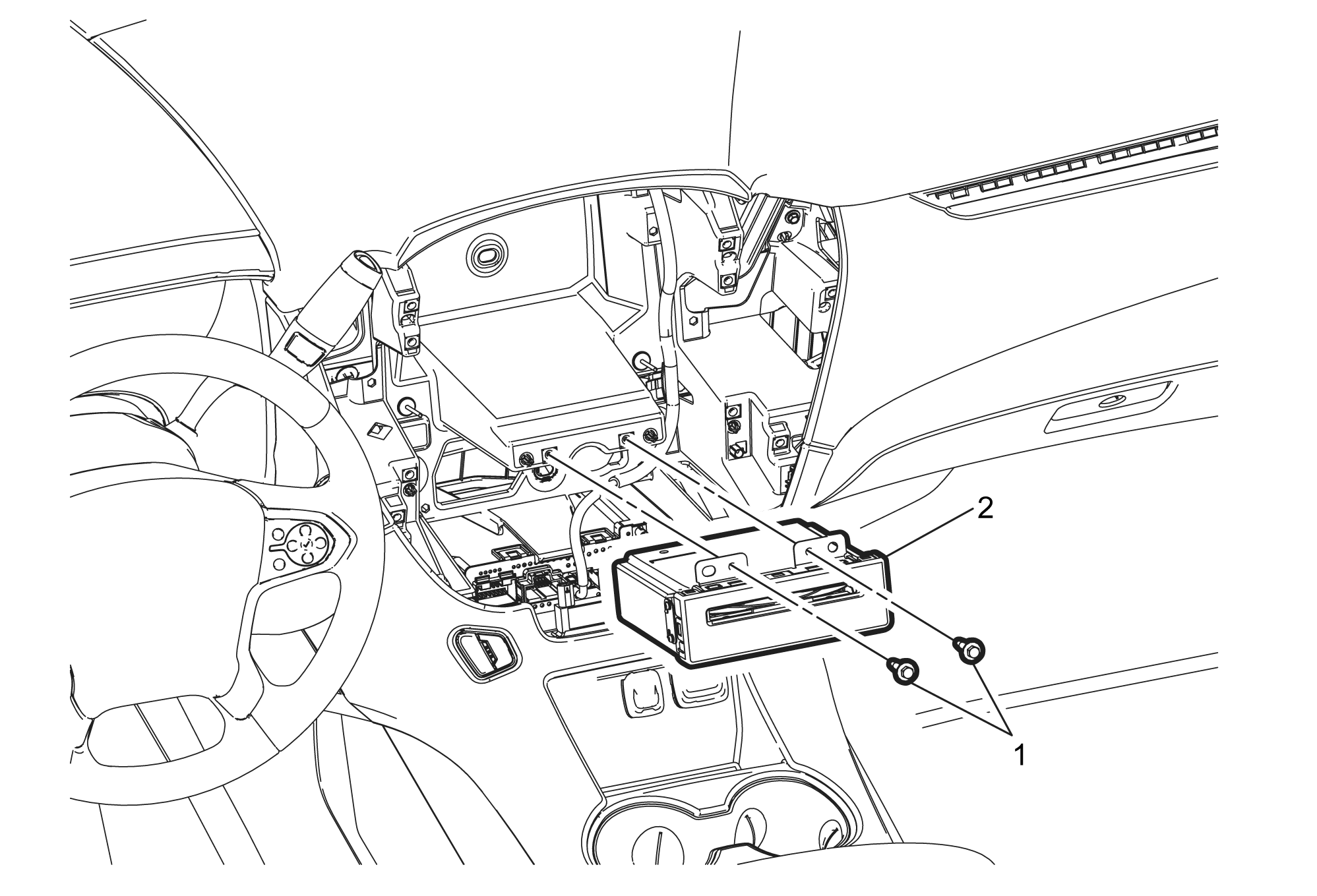

Fig 1: Disc Player

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the radio control assembly. Refer to Radio Control Assembly Replacement (Chevrolet / GMC) Radio Control Assembly Replacement (Cadillac) .
1	Disc Player Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Disc Player Procedure Disconnect the electrical connectors.
