Park Assist - Power, Ground, and Serial Data (UD5 or UD7)

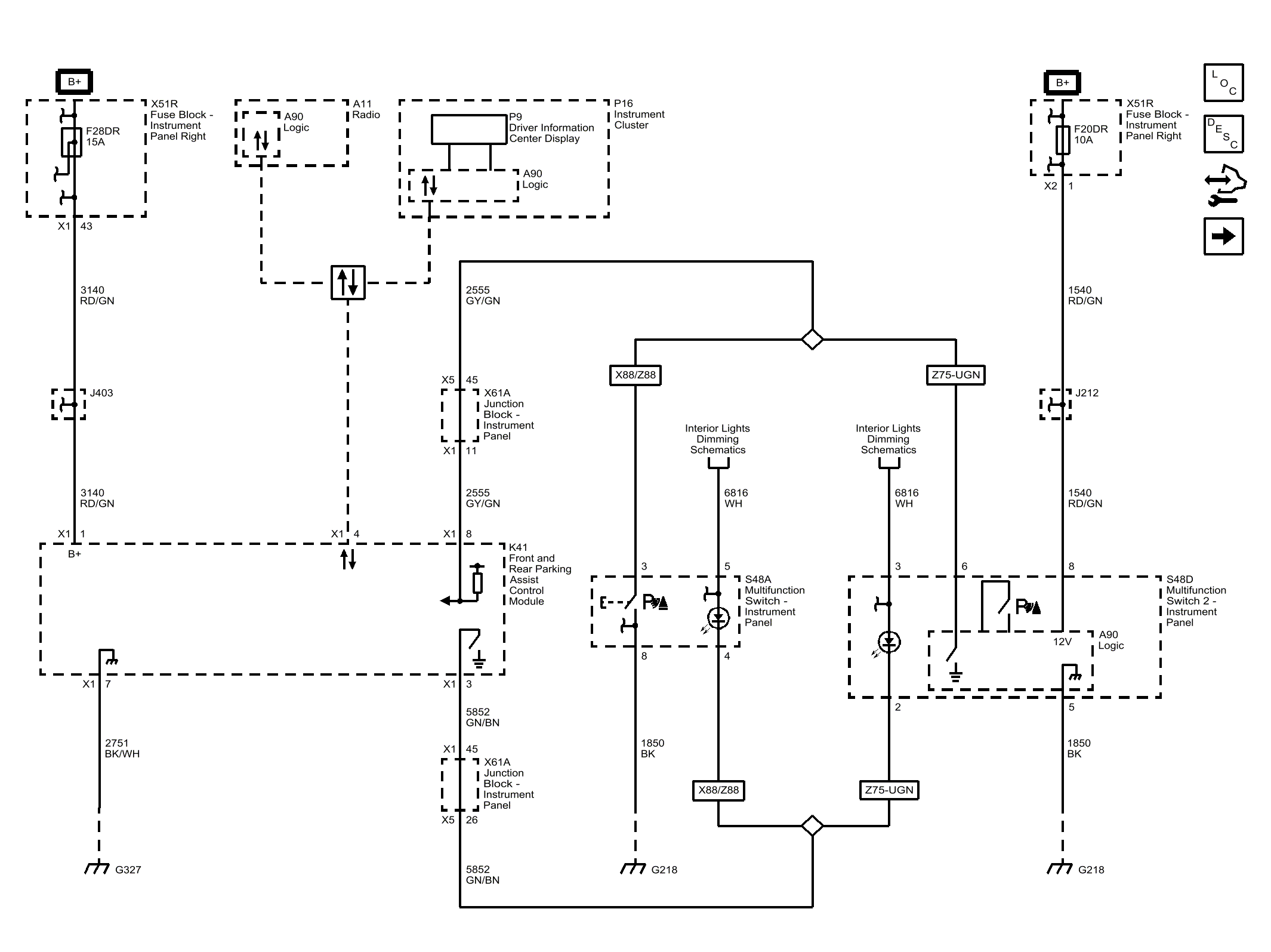

Fig 1: Park Assist - Power, Ground, and Serial Data (UD5 or UD7)

GM3636962

Courtesy of GENERAL MOTORS COMPANY
