Comprehensive Safety - Camera and Front Long Range Radar (UGN and Z75)

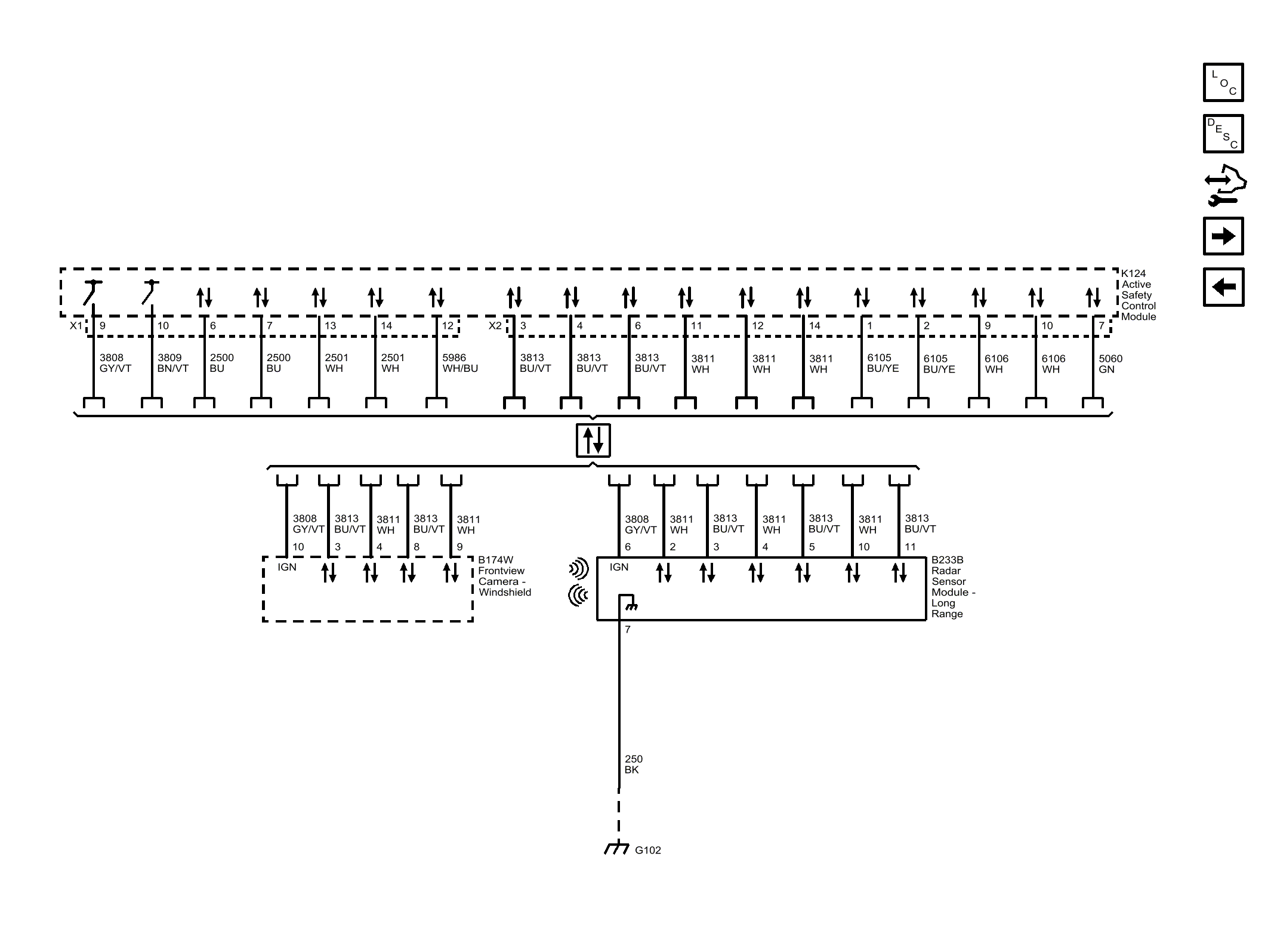

Fig 1: Comprehensive Safety - Camera and Front Long Range Radar (UGN and Z75)

GM3636970

Courtesy of GENERAL MOTORS COMPANY
