Forward Range Radar Module Replacement (Cadillac without AVF)

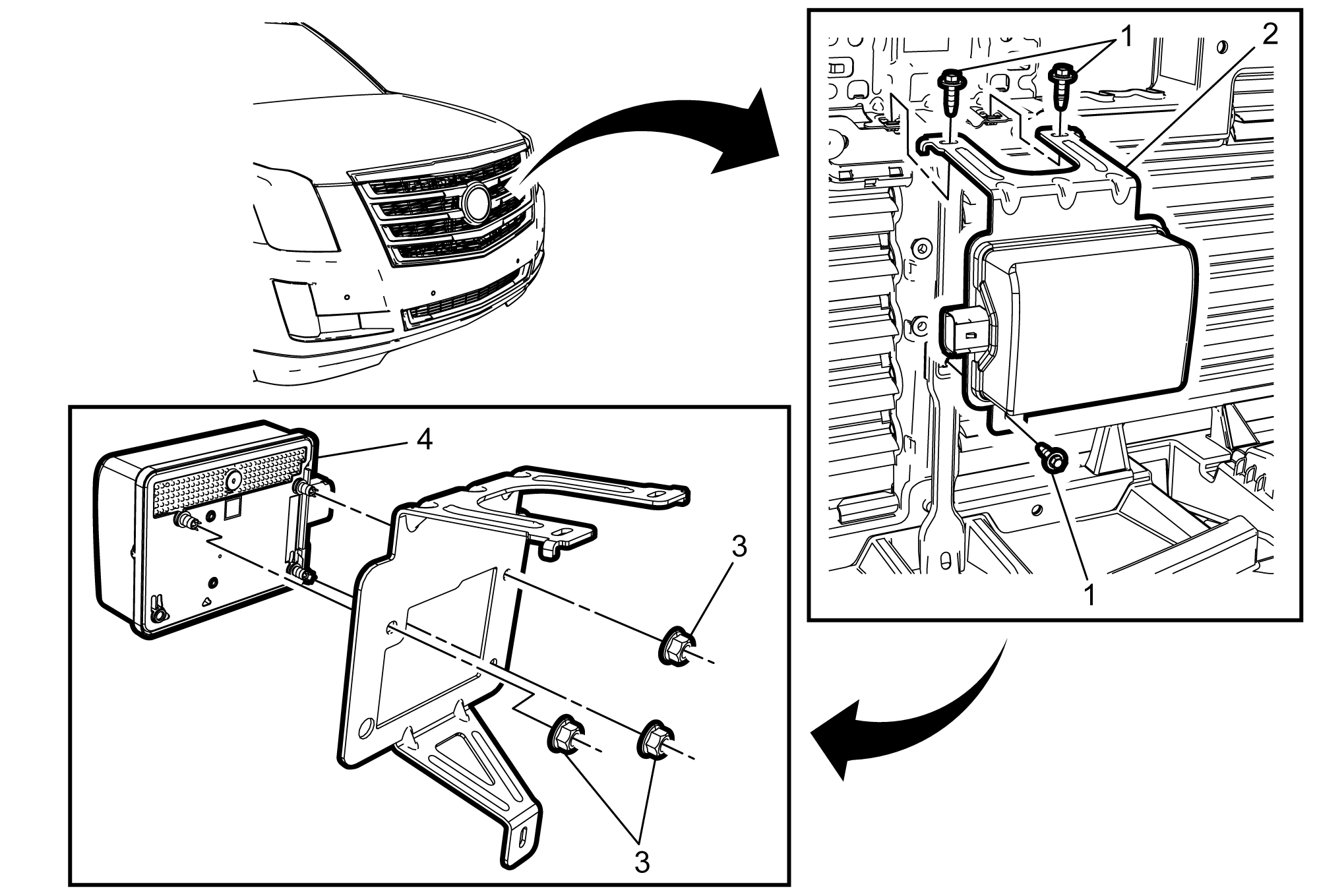

Fig 1: Forward Range Radar Module (Cadillac without AVF)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Cadillac) . Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement .
1	Forward Range Radar Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Forward Range Radar Bracket
3	Forward Range Radar Module Nut (Qty: 3) Tighten 9 N.m (80 lb in)
4	Forward Range Radar Module Procedure Disconnect the electrical connector. For programming and set up, refer to Control Module References . Use a digital angle gauge to align the forward range radar module vertically (at the edge or on the bracket behind the module). NOTE: The digital angle gauge must have an accuracy of ±0.5 degrees (9 mm/m). The vertical position of forward range radar module is 90 degrees (±3 degrees).
