Module Power, Ground, and Serial Data (MH2 or MH4)

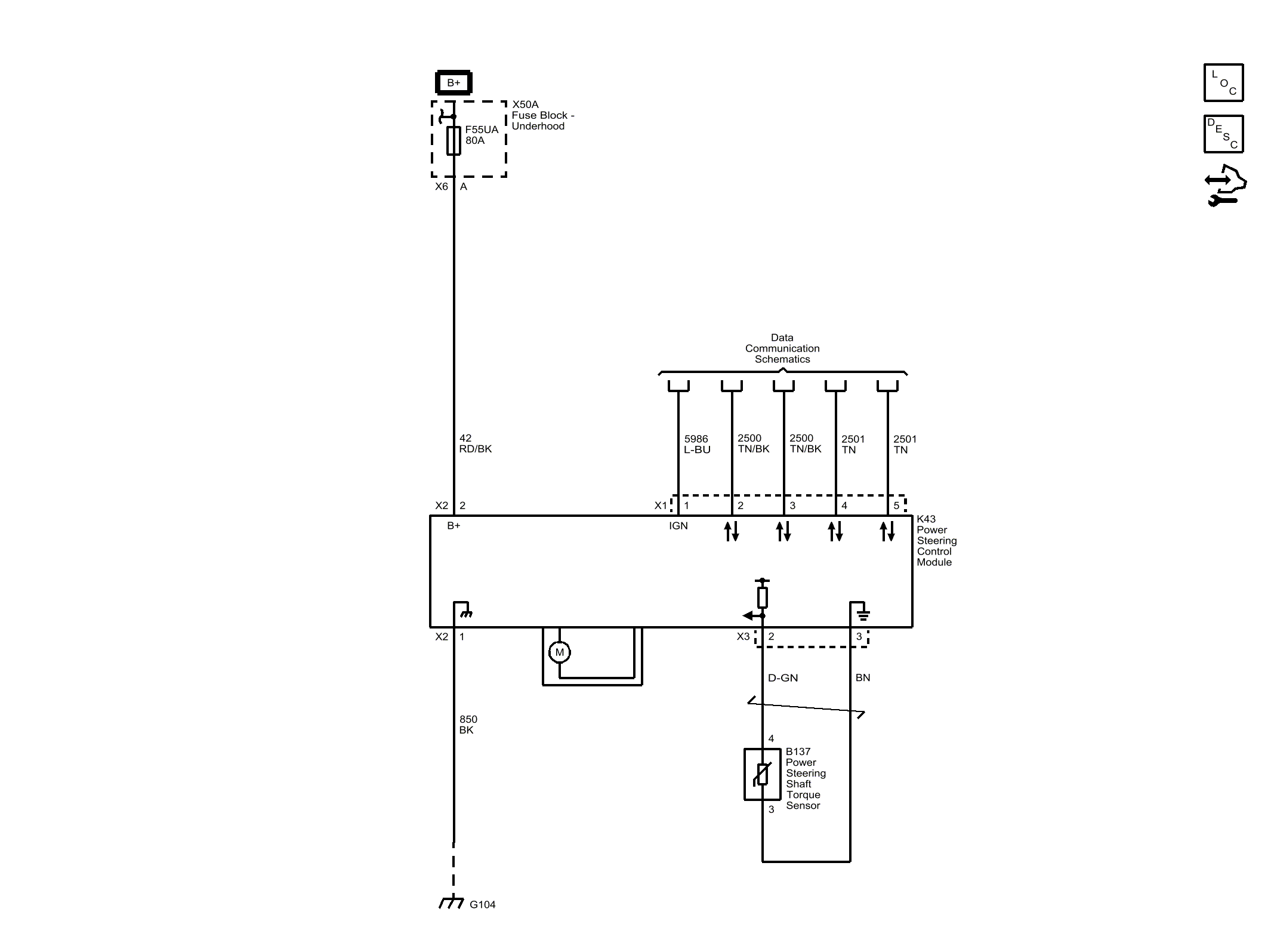

Fig 1: Module Power, Ground, and Serial Data (MH2 or MH4)

GM3805243

Courtesy of GENERAL MOTORS COMPANY
