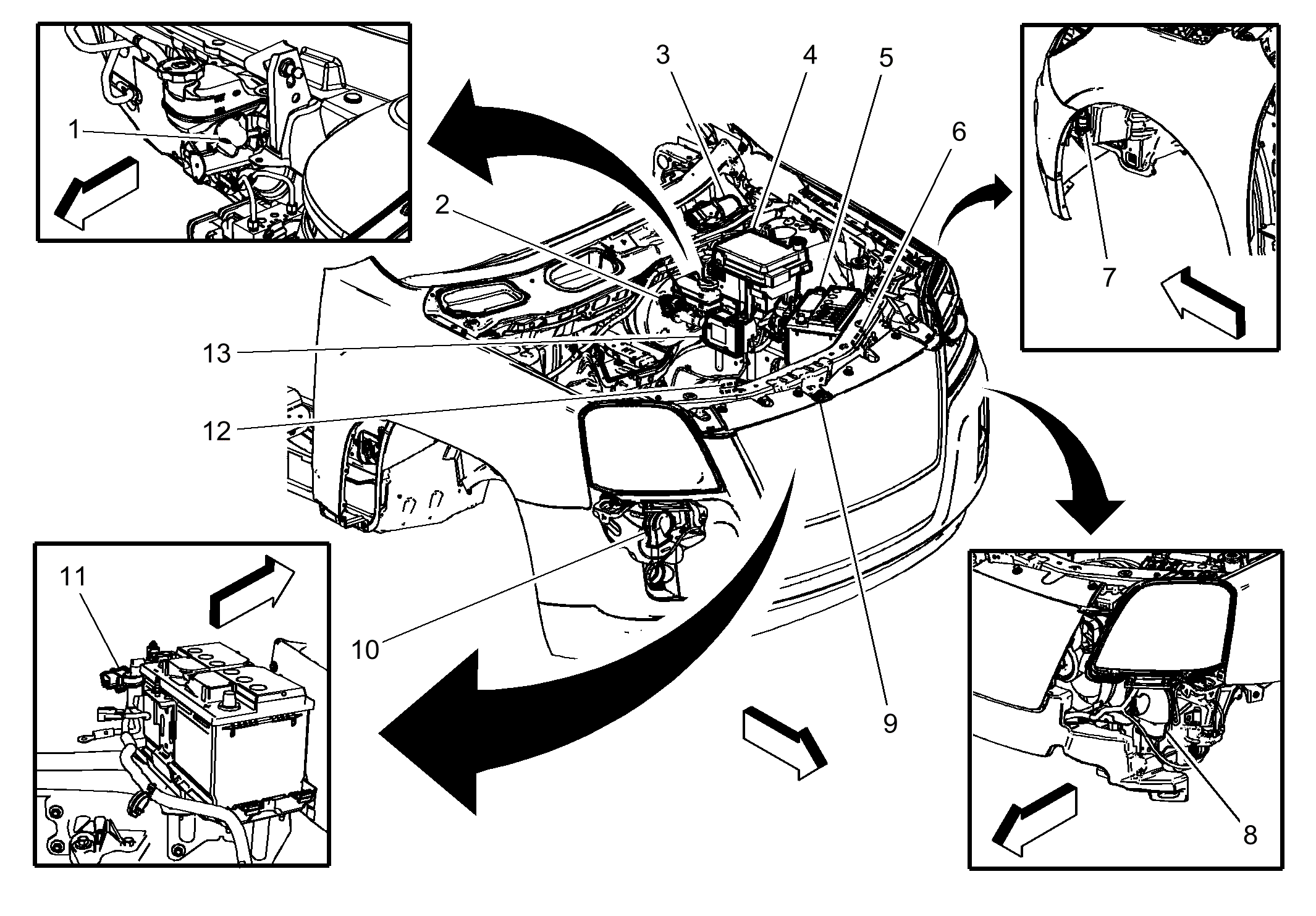

Engine Compartment Components (3 of 3)
Engine Compartment Components (3 of 3)
| Items |
|---|
| 1: B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch |
| 2: B19B Brake Booster Vacuum Sensor B19B Brake Booster Vacuum Sensor |
| 3: M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 4: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5X50A Fuse Block - Underhood X6 |
| 5: C1 Battery C1 Battery ((+))C1 Battery (-) (Battery Cable to Body)C1 Battery ((-)) |
| 6: B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front |
| 7: G24 Windshield Washer Pump G24 Windshield Washer Pump |
| 8: P12B Horn - Low Note P12B Horn - Low Note |
| 9: B55 Hood Ajar Switch (BTV) B55 Hood Ajar Switch |
| 10: P12A Horn - High Note P12A Horn - High Note |
| 11: B18 Battery Current Sensor B18 Battery Current Sensor |
| 12: B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front |
| 13: K17 Electronic Brake Control Module K17 Electronic Brake Control Module |
