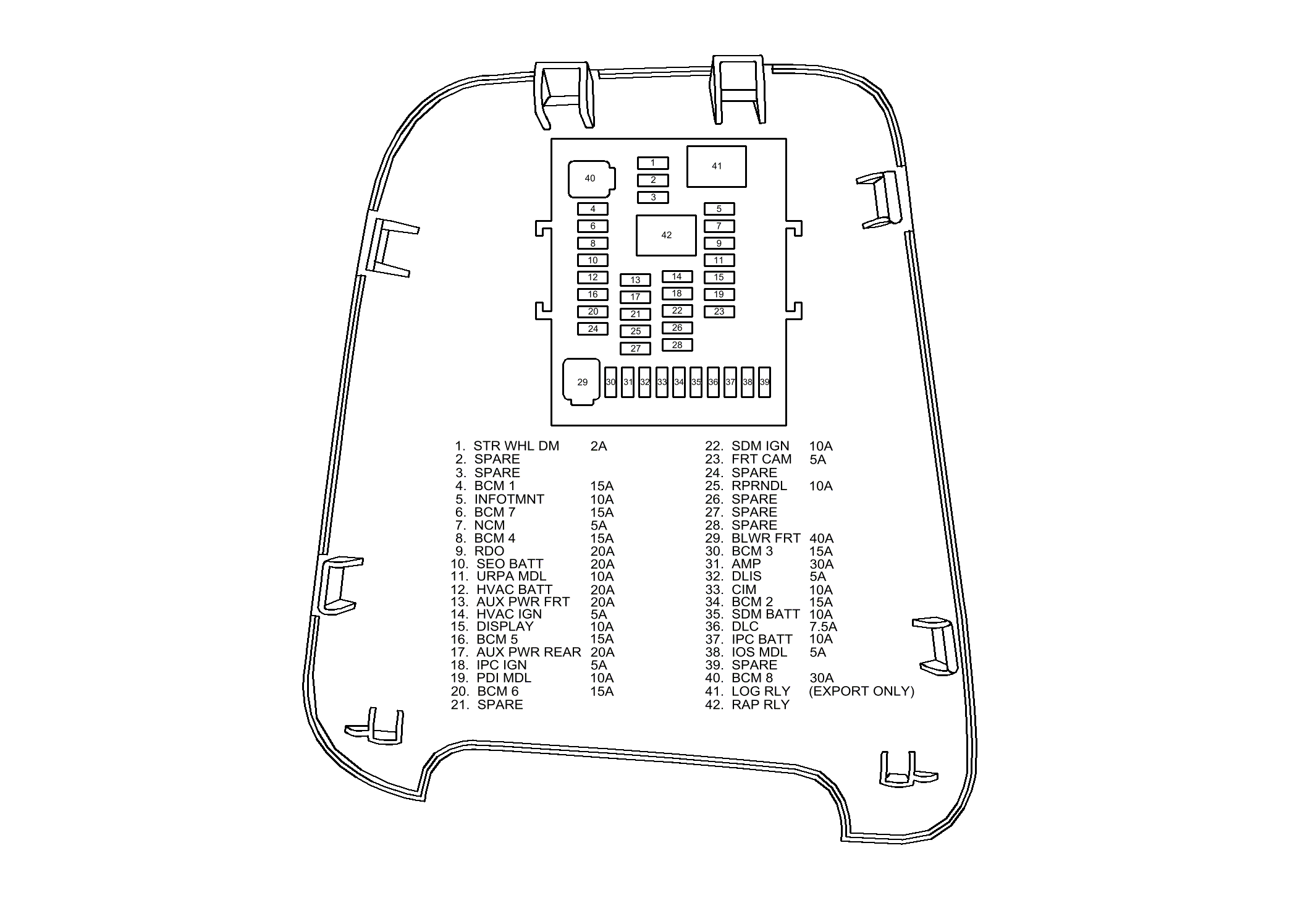

X51A Fuse Block - Instrument Panel Label
X51A FUSE BLOCK- INSTRUMENT PANEL FUSE AND RELAY IDENTIFICATION LEGEND (WITHOUT EXP)
| No. | Device Label Name | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|---|
| Fuses | ||||
| 1 | STR WHL DM Fuse | F1DA Fuse | 2A | S70L Steering Wheel Control Switch - Left, S70R Steering Wheel Control Switch - Right |
| 2 | SPARE | F2DA Fuse | - | Not Used |
| 3 | SPARE | F3DA Fuse | - | Not Used |
| 4 | BCM 1 Fuse | F4DA Fuse | 15A | K9 Body Control Module |
| 5 | INFOTMNT Fuse | F5DA Fuse | 10A | P22E Video Display - Driver Seatback (UWG), P22F Video Display - Passenger Seatback (UWG) |
| 6 | BCM 7 Fuse | F6DA Fuse | 15A | K9 Body Control Module |
| 7 | NCM Fuse | F7DA Fuse | 5A | K108 Active Noise Cancellation Module (VQN) |
| 8 | BCM 4 Fuse | F8DA Fuse | 15A | K9 Body Control Module |
| 9 | RDO Fuse | F9DA Fuse | 20A | A11 Radio |
| 10 | SPARE | F10DA | - | Not Used |
| 11 | URPA MDL Fuse | F11DA Fuse | 10A | K41R Rear parking Assist Control Module (UD7) |
| 12 | HVAC BATT Fuse | F12DA Fuse | 20A | K33 HVAC Control Module |
| 13 | AUX PWR FRT Fuse | F13DA Fuse | 20A | X80G Accessory Power Receptacle - Instrument Panel |
| 14 | HVAC IGN Fuse | F14DA Fuse | 5A | K33 HVAC Control Module |
| 15 | DSPLY Fuse | F15DA Fuse | 10A | P17 Info Display Module, A20 Radio/HVAC Controls |
| 16 | BCM 5 Fuse | F16DA Fuse | 15A | K9 Body Control Module |
| 17 | AUX PWR REAR Fuse | F17DA Fuse | 20A | X80A Accessory Power Receptacle - Center Console 1, X80B Accessory Power Receptacle - Center Console 2 |
| 18 | IPC IGN Fuse | F18DA Fuse | 5A | P16 Instrument Cluster |
| 19 | UGDO Fuse | F19DA Fuse | 10A | S25 Garage Door Opener |
| 20 | BCM 6 Fuse | F20DA Fuse | 15A | K9 Body Control Module |
| 21 | SPARE | F21DA Fuse | - | Not Used |
| 22 | SDM IGN Fuse | F22DA Fuse | 10A | K36 Inflatable Restraint Sensing and Diagnostic Module |
| 23 | FRT CAM | F23DA Fuse | 5A | K109 Front View Camera Module |
| 24 | SPARE | F24DA Fuse | - | Not Used |
| 25 | RPRNDL Fuse | F25DA Fuse | 10A | P2 Transmission Shift Lever Position Indicator |
| 26 | SPARE | F26DA Fuse | - | Not Used |
| 27 | SPARE | F27DA Fuse | - | Not Used |
| 28 | SPARE | F28DA Fuse | - | Not Used |
| 29 | BLWR FRT Fuse | F29DA Fuse | 40A | K8 Blower Motor Control Module |
| 30 | BCM 3 Fuse | F30DA Fuse | 15A | K9 Body Control Module |
| 31 | AMP Fuse | F31DA Fuse | 30A | T3 Audio Amplifier |
| 32 | DLIS Fuse | F32DA Fuse | 5A | S39 Ignition Switch |
| 33 | CIM Fuse | F33DA Fuse | 10A | K73 Telematics Communication Interface Control Module (UE1) |
| 34 | BCM 2 Fuse | F34DA Fuse | 15A | K9 Body Control Module |
| 35 | SDM BATT Fuse | F35DA Fuse | 10A | K39 Inflatable Restraint Sensing and Diagnostic Module |
| 36 | DLC Fuse | F36DA Fuse | 7.5A | X84 Data Link Connector |
| 37 | IPC BATT Fuse | F37DA Fuse | 10A | P16 Instrument Cluster |
| 38 | IOS MDL Fuse | F38DA Fuse | 5A | B60 Passenger Presence Sensor |
| 39 | SPARE | F39DA Fuse | - | Not Used |
| 40 | BCM 8 Fuse | F40DA Fuse | 30A | K9 Body Control Module |
| Relays | ||||
| 41 | LOG RLY | KR104A Battery Saver Relay 1 | - | F5DA, F7DA, F9DA, F11DA, F15DA, and F19DA Fuses (EXP) |
| 42 | RAP RLY | KR76 Retained Accessory Power Relay | - | F13DA, F17DA, F21DA, and F25DA Fuses |
X51A FUSE BLOCK-- INSTRUMENT PANEL, FUSE AND RELAY IDENTIFICATION LEGEND (EXP)
| No. | Device Label Name | Fuse And Relay Description | Rating | Circuits |
|---|---|---|---|---|
| Fuses | ||||
| 1 | STR WHL DM Fuse | F1DA Fuse | 2A | S70L Steering Wheel Control Switch - Left, S70R Steering Wheel Control Switch - Right |
| 2 | SPARE | F2DA Fuse | - | Not Used |
| 3 | SPARE | F3DA Fuse | - | Not Used |
| 4 | BCM 1 Fuse | F4DA Fuse | 15A | K9 Body Control Module |
| 5 | INFOTMNT Fuse | F5DA Fuse | 10A | P22E Video Display - Driver Seatback (UWG), P22F Video Display - Passenger Seatback (UWG) |
| 6 | BCM 7 Fuse | F6DA Fuse | 15A | K9 Body Control Module |
| 7 | NCM Fuse | F7DA Fuse | 5A | K108 Active Noise Cancellation Module (VQN) |
| 8 | BCM 4 Fuse | F8DA Fuse | 15A | K9 Body Control Module |
| 9 | RDO Fuse | F9DA Fuse | 20A | A11 Radio |
| 10 | SPARE | F10DA Fuse | - | Not Used |
| 11 | URPA MDL Fuse | F11DA Fuse | 10A | K41R Rear parking Assist Control Module (UD7) |
| 12 | HVAC BATT Fuse | F12DA Fuse | 20A | K33 HVAC Control Module |
| 13 | AUX PWR FRT Fuse | F13DA Fuse | 20A | X80G Accessory Power Receptacle - Instrument Panel |
| 14 | HVAC IGN Fuse | F14DA Fuse | 5A | K33 HVAC Control Module |
| 15 | DSPLY Fuse | F15DA Fuse | 10A | P17 Info Display Module, A20 Radio/HVAC Controls |
| 16 | BCM 5 Fuse | F16DA Fuse | 15A | K9 Body Control Module |
| 17 | AUX PWR REAR Fuse | F17DA Fuse | 20A | X80A Accessory Power Receptacle - Center Console 1, X80B Accessory Power Receptacle - Center Console 2 |
| 18 | IPC IGN Fuse | F18DA Fuse | 5A | P16 Instrument Cluster |
| 19 | UGDO Fuse | F19DA Fuse | 10A | S25 Garage Door Opener |
| 20 | BCM 6 Fuse | F20DA Fuse | 15A | K9 Body Control Module |
| 21 | SPARE | F21DA Fuse | - | Not Used |
| 22 | SDM IGN Fuse | F22DA Fuse | 10A | K36 Inflatable Restraint Sensing and Diagnostic Module |
| 23 | FRT CAM | F23DA Fuse | 5A | K109 Front View Camera Module |
| 24 | SPARE | F24DA Fuse | - | Not Used |
| 25 | RPRNDL Fuse | F25DA Fuse | 10A | P2 Transmission Shift Lever Position Indicator |
| 26 | SPARE | F26DA Fuse | - | Not Used |
| 27 | SPARE | F27DA Fuse | - | Not Used |
| 28 | SPARE | F28DA Fuse | - | Not Used |
| 29 | BLWR FRT Fuse | F29DA Fuse | 40A | K8 Blower Motor Control Module |
| 30 | BCM 3 Fuse | F30DA Fuse | 15A | K9 Body Control Module |
| 31 | AMP Fuse | F31DA Fuse | 30A | T3 Audio Amplifier |
| 32 | DLIS Fuse | F32DA Fuse | 5A | S39 Ignition Switch |
| 33 | CIM Fuse | F33DA Fuse | 10A | K73 Telematics Communication Interface Control Module (UE1) |
| 34 | BCM 2 Fuse | F34DA Fuse | 15A | K9 Body Control Module |
| 35 | SDM BATT Fuse | F35DA Fuse | 10A | K39 Inflatable Restraint Sensing and Diagnostic Module |
| 36 | DLC Fuse | F36DA Fuse | 7.5A | X84 Data Link Connector |
| 37 | IPC BATT Fuse | F37DA Fuse | 10A | P16 Instrument Cluster |
| 38 | IOS MDL Fuse | F38DA Fuse | 5A | B60 Passenger Presence Sensor |
| 39 | SPARE | F39DA Fuse | - | Not Used |
| 40 | BCM 8 Fuse | F40DA Fuse | 30A | K9 Body Control Module |
| Relays | ||||
| 41 | LOG RLY | KR104A Battery Saver Relay 1 | - | F5DA, F7DA, F9DA, F11DA, F15DA, and F19DA Fuses (EXP) |
| 42 | RAP RLY | KR76 Retained Accessory Power Relay | - | F13DA, F17DA, F21DA, and F25DA Fuses |
