Rear Side Door Window Regulator Replacement

Preliminary Procedures

1. Place the window in the fully down position.
2. Remove rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
3. Remove the rear side door inner sealing strip. Refer to Rear Side Door Window Inner Sealing Strip Replacement .

Procedure

1. Remove the rear side door water deflector.

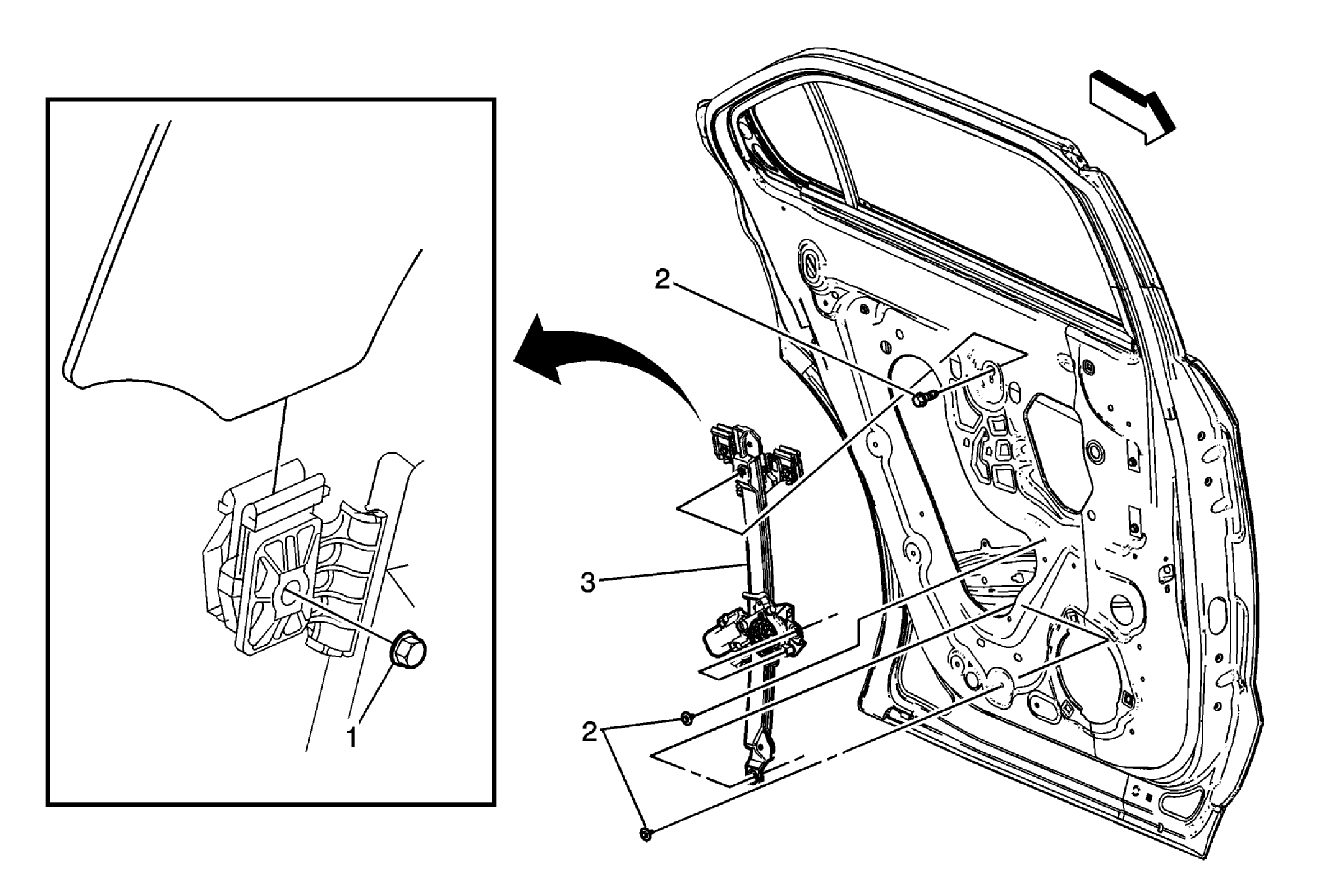

2. Position window to access the rear side door window regulator guide bolts.

   Loosen the nuts on the window regulator guide.

3. Raise the window to the fully up position, tape in place.
4. Disconnect the electrical connector from the motor.

Procedure

1. When installing a new window regulator, transfer the two window regulator guides nuts.
2. After the window regulator has been installed and connected remove the tape from the window and lower the window to meet the regulator guides nuts.
3. Inspect the door window for proper operation before installing the door trim panel.
