Rear Compartment Lid Release Switch Replacement

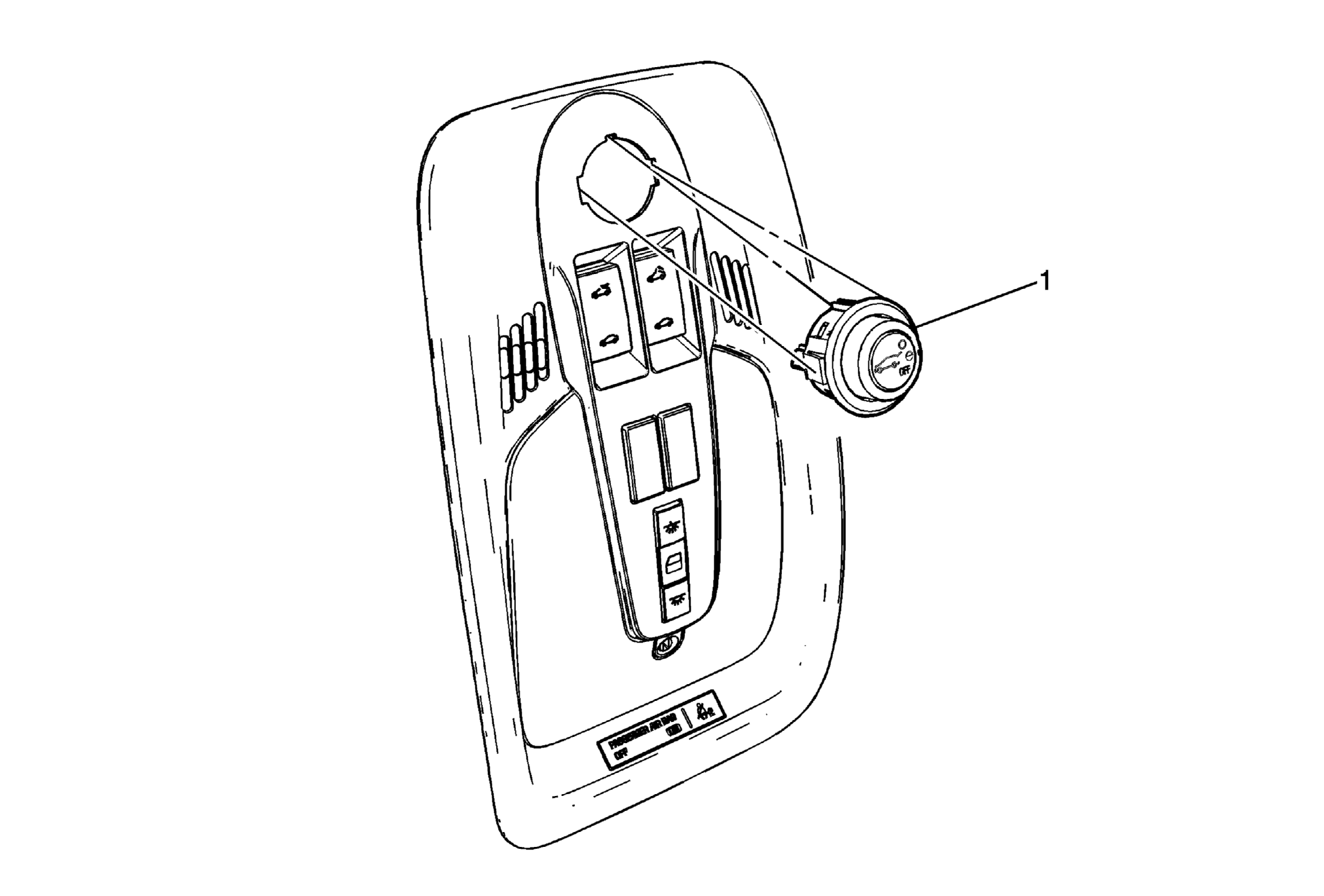

Fig 1: Rear Compartment Lid Release Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the roof console. Refer to Roof Console Replacement .
1	Rear Compartment Lid Release Switch Procedures Depress tabs to remove. Disconnect electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the roof console. Refer to Roof Console Replacement .

Rear Compartment Lid Release Switch

Procedures
