Cruise Control Switch Replacement (NK5)

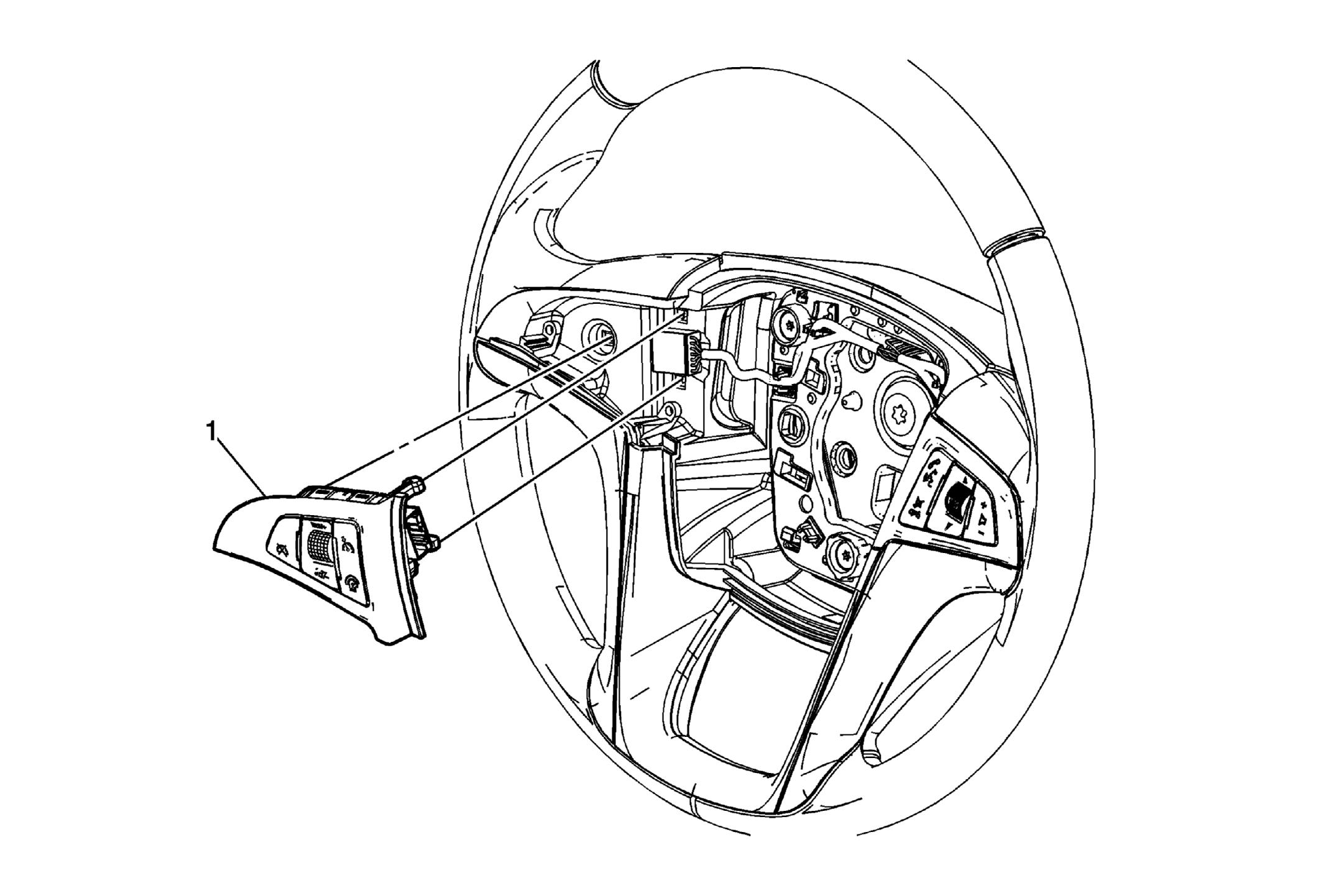

Fig 1: Cruise Control Switch (NK5)
GM2244778Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Airbag Steering Wheel Module Replacement
1 Cruise Control Switch

Procedure

  1. Use a flat bladed plastic tool to remove.
  2. Disconnect the electrical connector.
