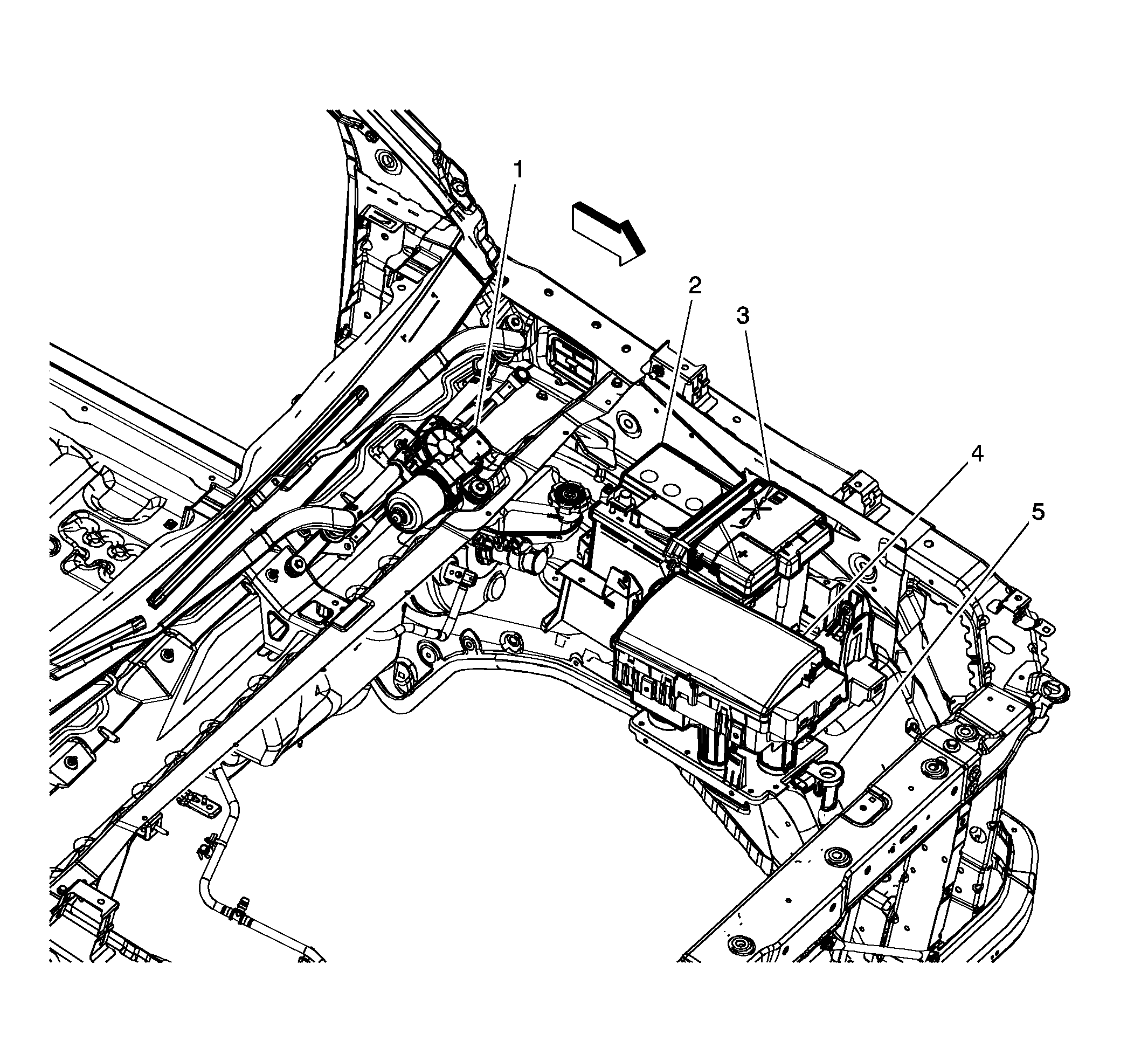

Left Side of Engine Compartment Components (1 of 2)
Left Side of Engine Compartment Components (1 of 2)
| Items |
|---|
| 1: M75 Windshield Wiper Motor M75 Windshield Wiper Motor |
| 2: C1 Battery C1 Battery |
| 3: X50D Fuse Block - Battery X50D Fuse Block - Battery X1X50D Fuse Block - Battery X2X50D Fuse Block - Battery X3X50D Fuse Block - Battery X4X50D Fuse Block -Battery X5X50D Fuse Block - Battery X6X50D Fuse Block - Battery X7 |
| 4: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3X50A Fuse Block - Underhood X4X50A Fuse Block - Underhood X5 |
| 5: B18 Battery Current Sensor B18 Battery Current Sensor |
