Right Bottom of Engine Components (LFX)

Right Bottom of Engine Components (LFX)

Items
1: B68A Knock Sensor 1 B68A Knock Sensor 1 (LFX)
2: M9 Brake Booster Pump Motor (LFX) M9 Brake Booster Pump Motor (LFX)
3: B35 Engine Oil Level Switch B35 Engine Oil Level Switch (LFX)
4: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (LFX)

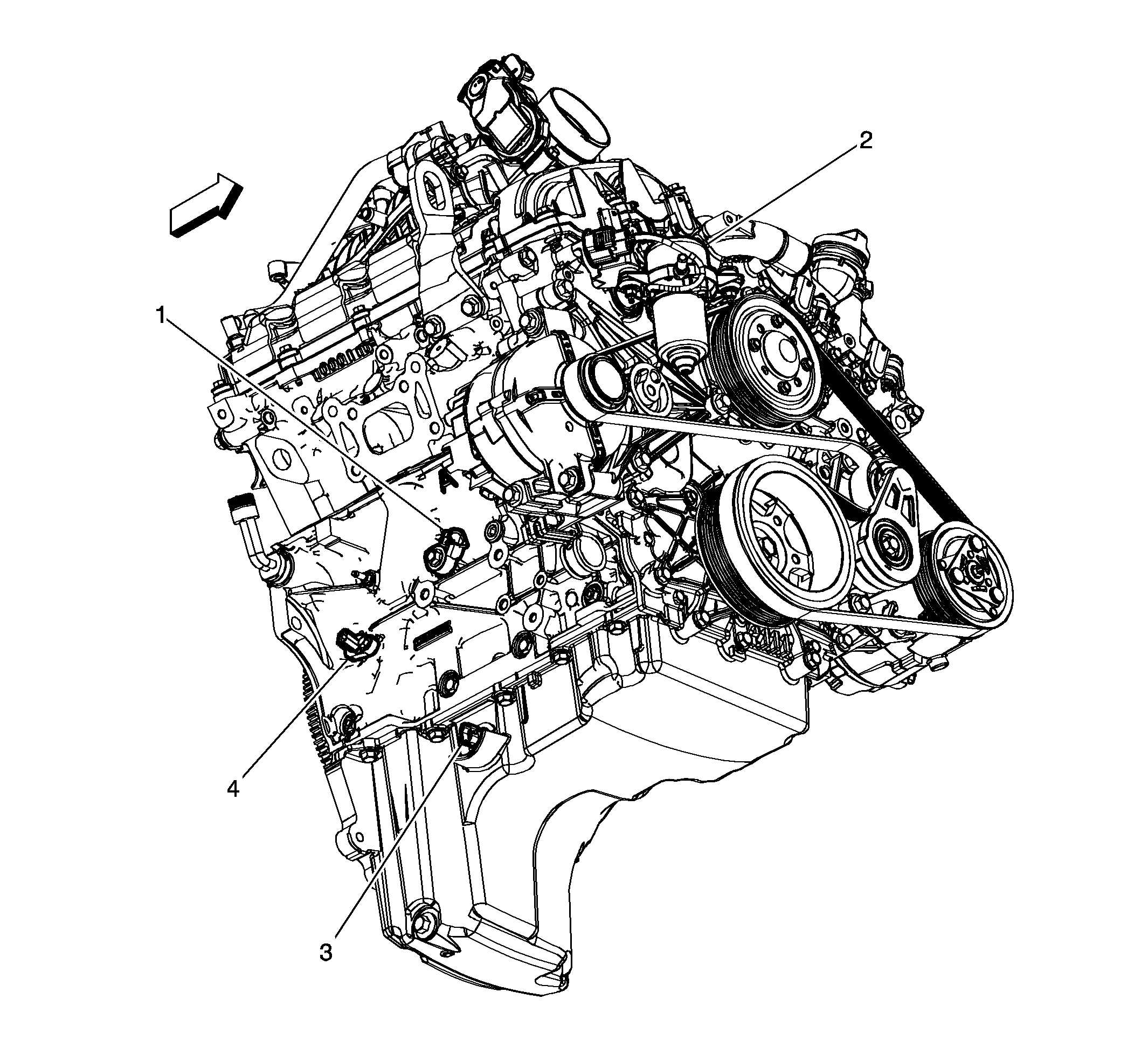

Fig 1: Right Bottom of Engine Components (LFX)
GM3921647Courtesy of GENERAL MOTORS COMPANY
