Right Passenger Components (Extended Cab)

Right Passenger Components (Extended Cab)

Items
1: K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X1 (UE1)K73 Telematics Communication Interface Control Module X2 (UE1)K73 Telematics Communication Interface Control Module X5K73 Telematics Communication Interface Control Module X7
2: F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right (Crew Cab)
3: B63RR Side Impact Sensor - Right Rear B63RR Side Impact Sensor - Right Rear
4: X51A Fuse Block - Instrument Panel X51A Fuse Block - Instrument Panel X1X51A Fuse Block - Instrument Panel X2X51A Fuse Block - Instrument Panel X3
5: K69 Transfer Case Control Module (NQ6/NQ7) K69 Transfer Case Control Module X1 (NQ6/NQ7)K69 Transfer Case Control Module X2 (NQ6/NQ7)K69 Transfer Case Control Module X3 (NQ6/NQ7)
6: T15 Navigation Antenna Signal Splitter (IO6) T15 Navigation Antenna Signal Splitter X1T15 Navigation Antenna Signal Splitter X2T15 Navigation Antenna Signal Splitter X3

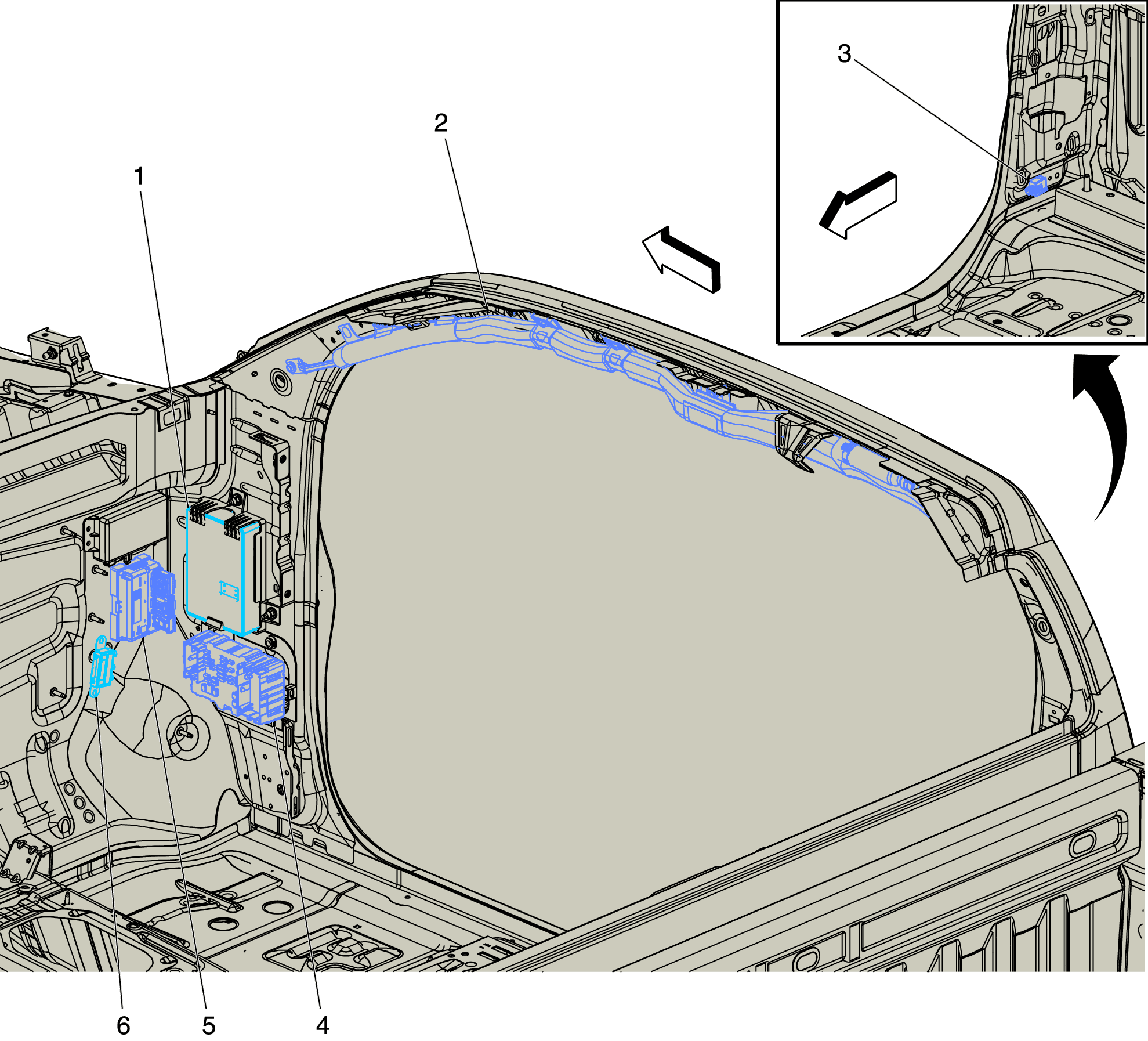

Fig 1: Right Passenger Components (Extended Cab)
GM3902811Courtesy of GENERAL MOTORS COMPANY
