Media Disc Player Power, Ground and Serial Data

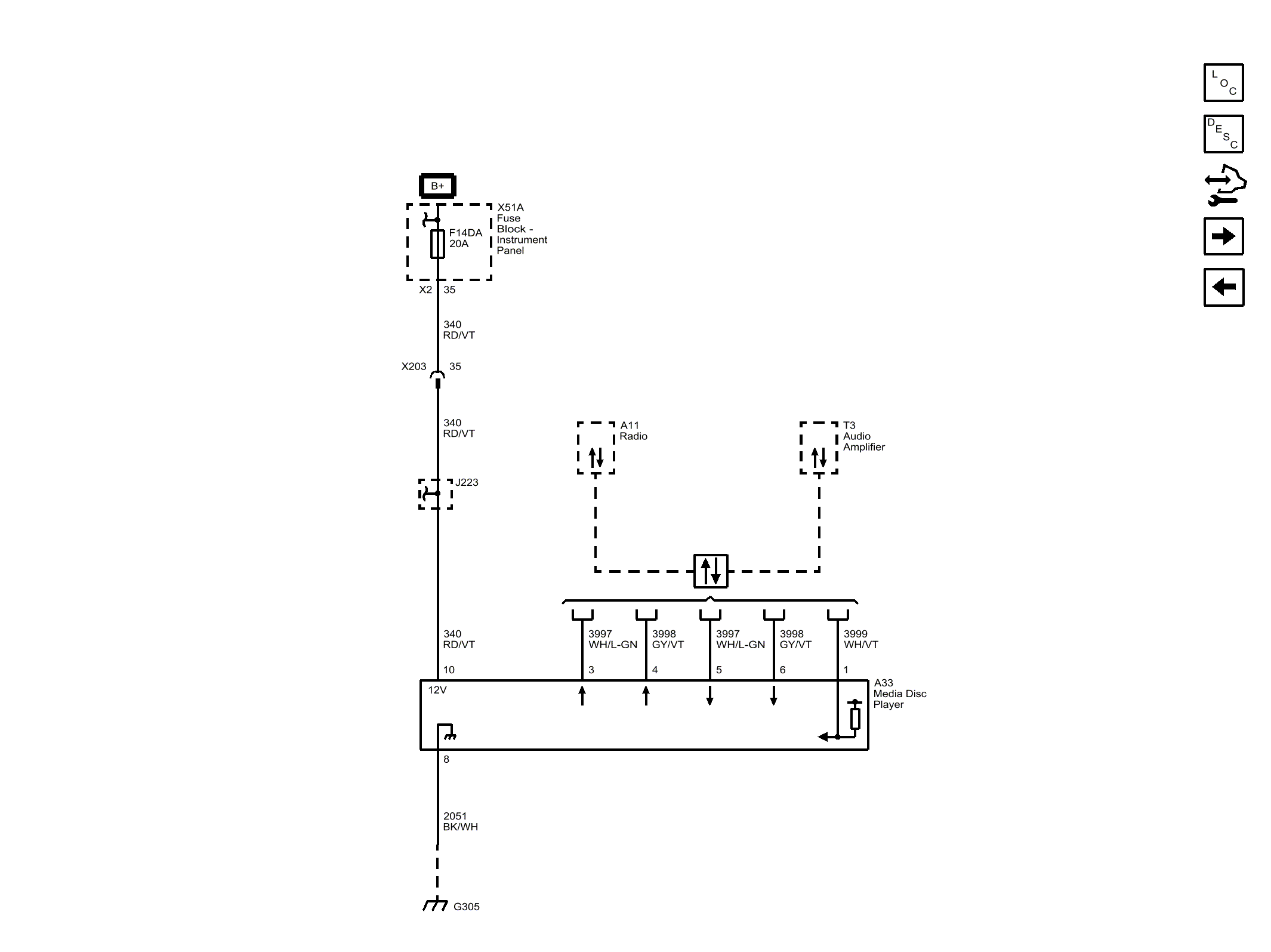

Fig 1: Media Disc Player Power, Ground and Serial Data
GM3826802Courtesy of GENERAL MOTORS COMPANY
